MT0635S - N-Channel MOSFET

MT Semiconductor

📥 Download Datasheet

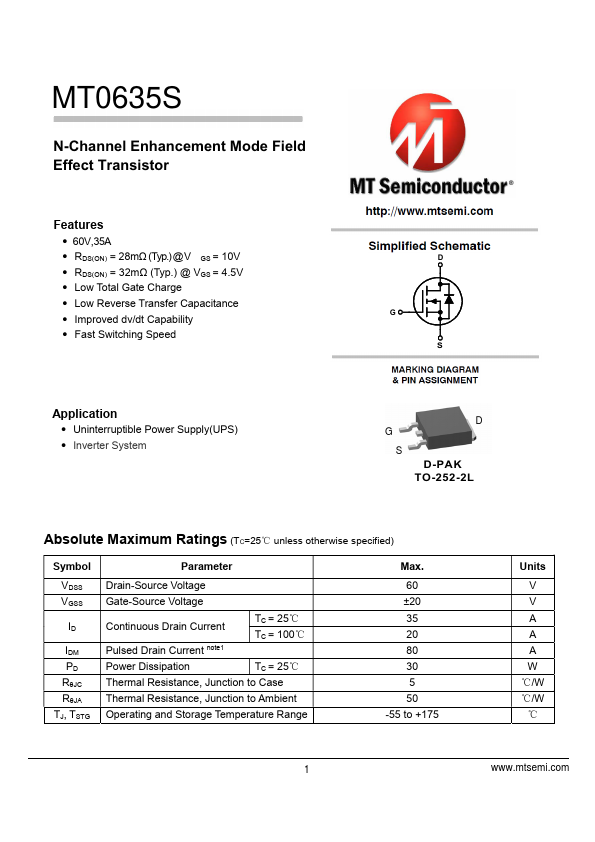

MT0635S Datasheet Preview — Preview of MT0635S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: MT0635S
Manufacturer: MT Semiconductor
File Size: 2.35 MB
Datasheet: MT0635S-MTSemiconductor.pdf
Description: N-Channel MOSFET

MT0635S Product details

Features

60V,35A.
RDS(ON) = 28mΩ (Typ. )@V GS = 10V.
RDS(ON) = 32mΩ (Typ. ) @ VGS = 4.5V.
Low Total Gate Charge.
Low Reverse Transfer Capacitance.
Improved dv/dt Capability.
Fast Switching Speed D G S Application.
Uninterruptible Power Supply(UPS).
Inverter System D G S D-PAK TO-252-2L Absolute Maximum Ratings (TC=25℃ unless otherwise specified) Symbol VDSS VGSS ID IDM PD RθJC RθJA TJ, TSTG Parameter Drain-Source Voltage Gate-Source Voltage Continuou.
