MT0620D - N-Channel Power MOSFET

MT Semiconductor

📥 Download Datasheet

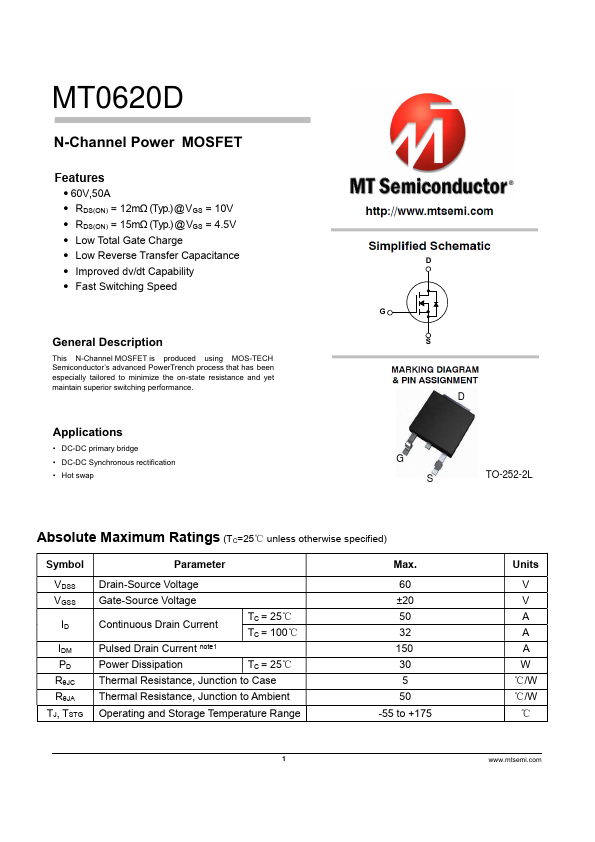

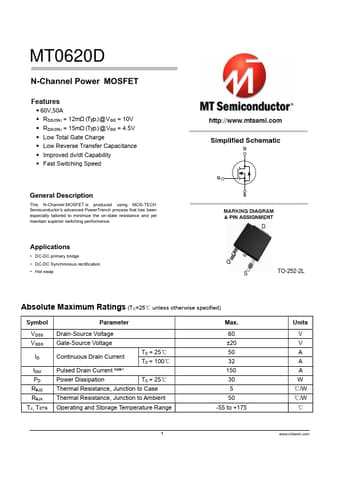

MT0620D Datasheet Preview — Preview of MT0620D PDF

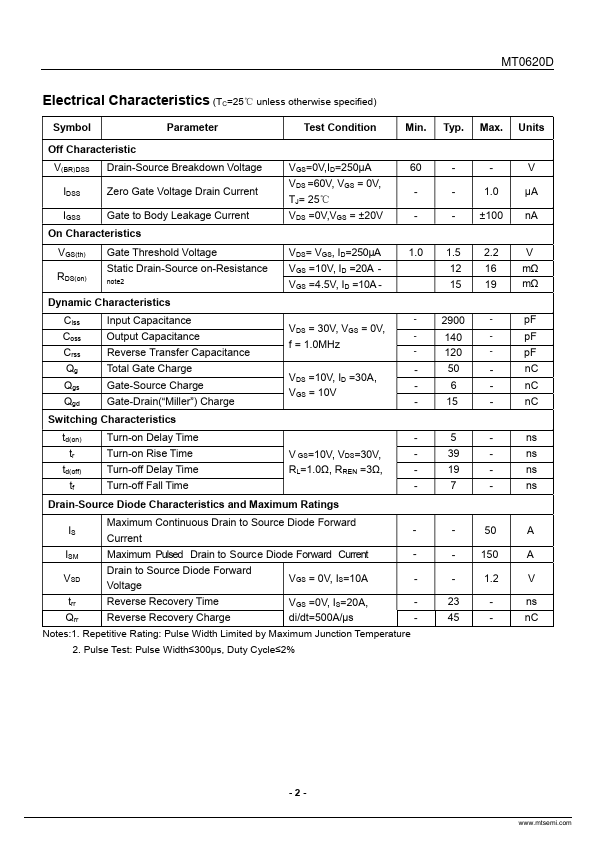

datasheet Preview Page 2

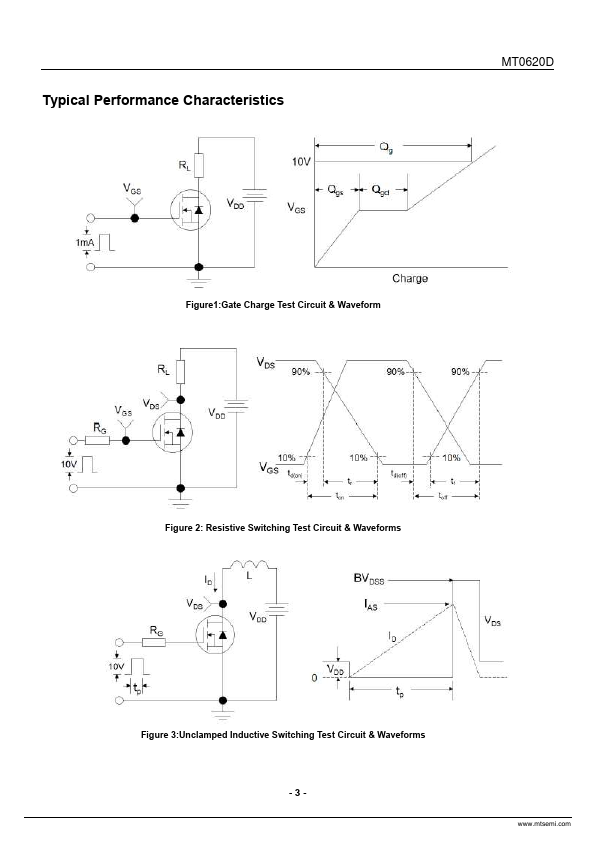

datasheet Preview Page 3

Datasheet Details

Part number: MT0620D
Manufacturer: MT Semiconductor
File Size: 1.63 MB
Datasheet: MT0620D-MTSemiconductor.pdf
Description: N-Channel Power MOSFET

MT0620D Product details

Features

60V,50A.
RDS(ON) = 12mΩ (Typ. )@VGS = 10V.
RDS(ON) = 15mΩ (Typ. ) @VGS = 4.5V.
Low Total Gate Charge.
Low Reverse Transfer Capacitance.
Improved dv/dt Capability.
Fast Switching Speed.
HQHUDO'.
