MT11G035B Datasheet - MT Semiconductor

MT11G035B - N-Channel MOSFET

 MT11G035B 1&KDQQHO(QKDQFHPHQW0R GH)LHOG (IIHFW7UDQVLVWRU Product Summary ‡ VDS = 100V ‡ I D = 160A (VGS = 10V) R ‡ DS(ON) 4.5 m @VGS =10V  The MT11G035B SGT MOSFET technology that is uniquely optimized to provide the most efficient high frequency switching performance.

Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg.

This device is ideal for high-frequency switching and synchronous rectif

MT11G035B-MTSemiconductor.pdf

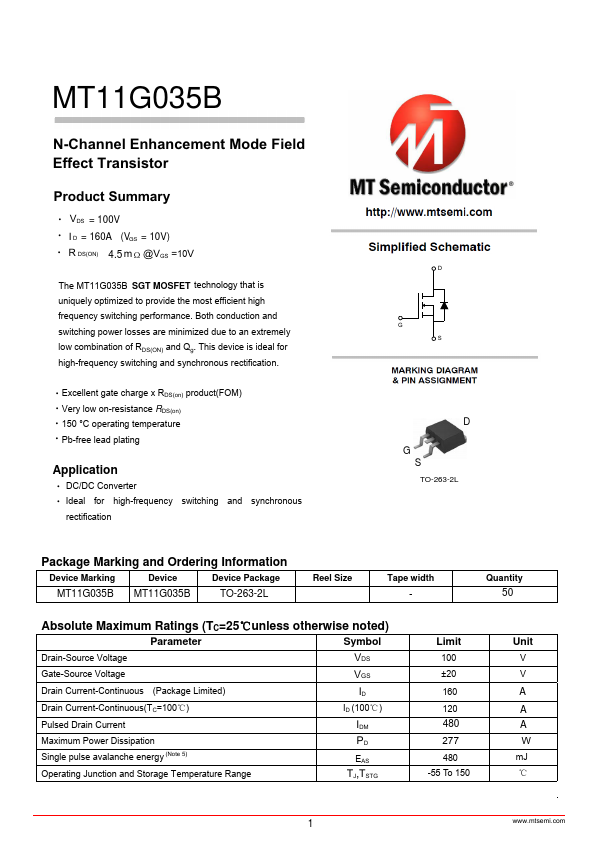

Preview of MT11G035B PDF

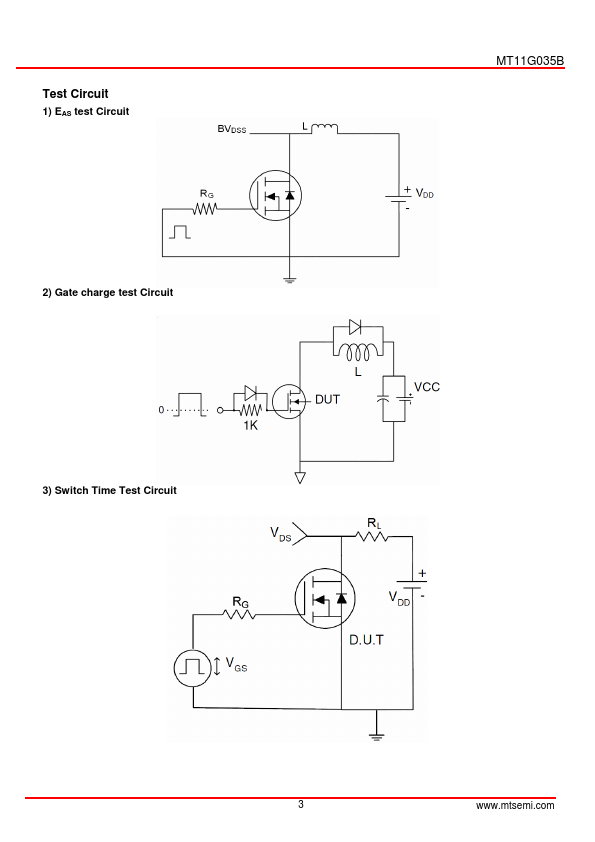

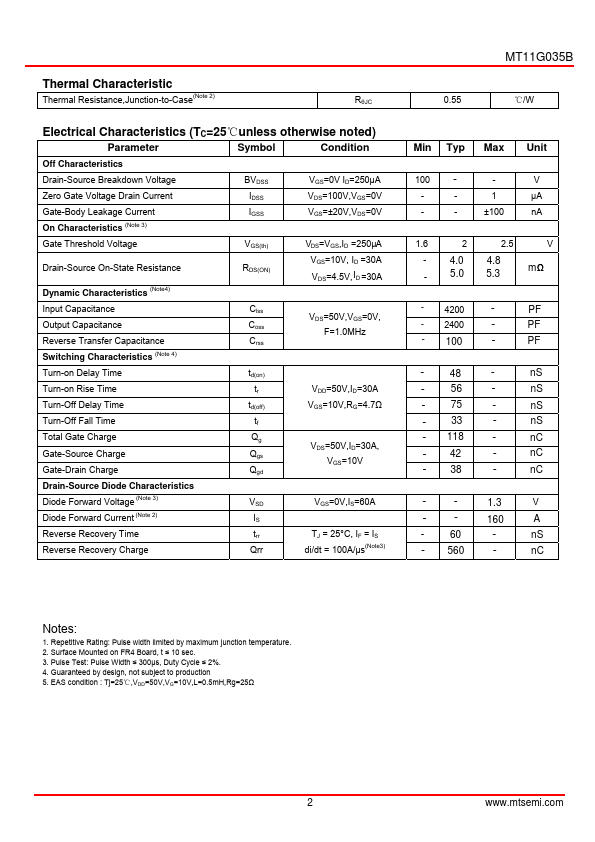

MT11G035B Datasheet Preview Page 2 MT11G035B Datasheet Preview Page 3

Datasheet Details

Part number:

MT11G035B

Manufacturer:

MT Semiconductor

File Size:

1.20 MB

Description:

N-channel mosfet.
