MT2833S5 - 30V Power MOSFET

Datasheet Summary

Description

N P 0RVWHFK¶VDGYDQFHG3RZHU7UHQFKSURFHVVWKDWKDVEHHQ HVSHFLDOOWDLORUHGWRPLQLPL]HWKHRQVWDWHUHVLVWDQFHDQG HWPDLQWDLQORZJDWHFKDUJHIRUVXSHULRUVZLWFKLQJ SHUIRUPDQFH $SSOLFDWLRQV ‡ '&'&FRQYHUWHU ‡ 3RZHUPDQDJHPHQW ‡ /&'EDFNOLJKWLQYHUWHU ‡ DC-FAN Absolute Maximum Ratings T

Features

  • N-Channel 30V/15.0A, RDS (ON) = 23mΩ (max. ) @ VGS = 10V RDS (ON) = 32mΩ (max. ) @ VGS = 4.5V.
  • P-Channel -30V/-12.0A, RDS (ON) = 37mΩ (max. ) @ VGS = -10V RDS (ON) = 53mΩ (max. ) @ VGS = -4.5V.
  • 5R+6&.

📥 Download Datasheet

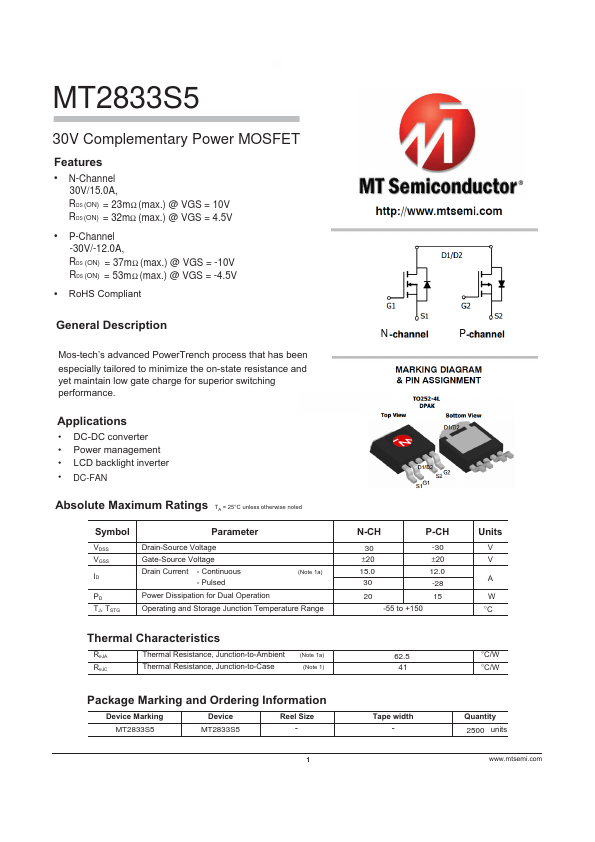

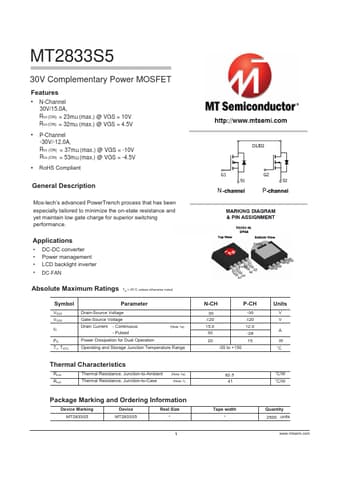

Datasheet preview – MT2833S5

Datasheet Details

Part number MT2833S5
Manufacturer MT Semiconductor
File Size 448.63 KB
Description 30V Power MOSFET
Datasheet download datasheet MT2833S5 Datasheet

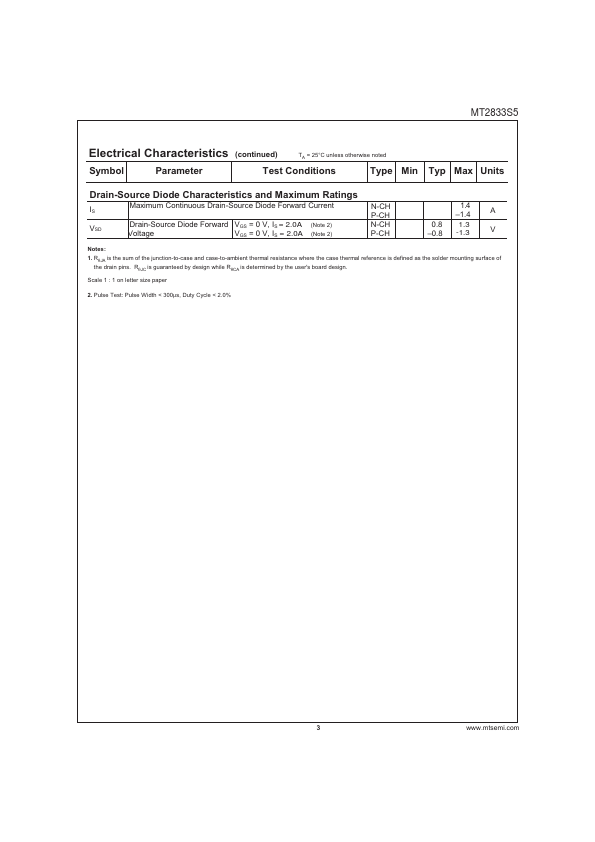

Additional preview pages of the MT2833S5 datasheet.

📁 Similar Datasheet

  • MT2854M16B1LL - FLASH MEMORY (Micron Technology)
  • MT28C128532W18 - 128Mb Multibank Burst Flash 32Mb ASYNC/PAGE CellularRAM COMBO Memory (Micron Technology)
  • MT28C128532W30D - 128Mb Multibank Burst Flash 32Mb ASYNC/PAGE CellularRAM COMBO Memory (Micron Technology)
  • MT28C128564W18 - 128Mb Multibank Burst Flash 32Mb ASYNC/PAGE CellularRAM COMBO Memory (Micron Technology)
  • MT28C128564W30D - 128Mb Multibank Burst Flash 32Mb ASYNC/PAGE CellularRAM COMBO Memory (Micron Technology)
  • MT28C3212P2 - FLASH AND SRAM COMBO MEMORY (MICRON)
  • MT28C3214P2FL - FLASH AND SRAM COMBO MEMORY (Micron Technology)
  • MT28C3214P2NFL - FLASH AND SRAM COMBO MEMORY (Micron Technology)
  • MT28C3224P18 - FLASH AND SRAM COMBO MEMORY (Micron Technology)
  • MT28C3224P20 - FLASH AND SRAM COMBO MEMORY (Micron Technology)
Other Datasheets by MT Semiconductor

Full PDF Text Transcription

Click to expand full text
 MT2833S5 30V Complementary Power MOSFET  Features • N-Channel 30V/15.0A, RDS (ON) = 23mΩ (max.) @ VGS = 10V RDS (ON) = 32mΩ (max.) @ VGS = 4.5V • P-Channel -30V/-12.0A, RDS (ON) = 37mΩ (max.) @ VGS = -10V RDS (ON) = 53mΩ (max.) @ VGS = -4.
