MT3004 N-Channel MOSFET

MT3004 Description

MT3004 1&KDQQHO(QKDQFHPHQW0RGH)LHOG (IIHFW7UDQVLVWRU Product Summary ‡ VDS = 30V ‡ I D = 80A ‡ R DS(ON) = 3.5 m @VGS=10V ‡ R DS(ON) = 5.0 m .

MT3004 Features

* ‡ Advanced Trench Process Technology. ‡ High Density Cell Design for Ultra Low ‡ On-Resistance. ‡ Lead free product is acquired. ‡ RoHS Compliant. $SSOLFDWLRQV ‡ Notebook Computer ‡ Portable Battery Pack DFN3X3-8L Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain

📥 Download Datasheet

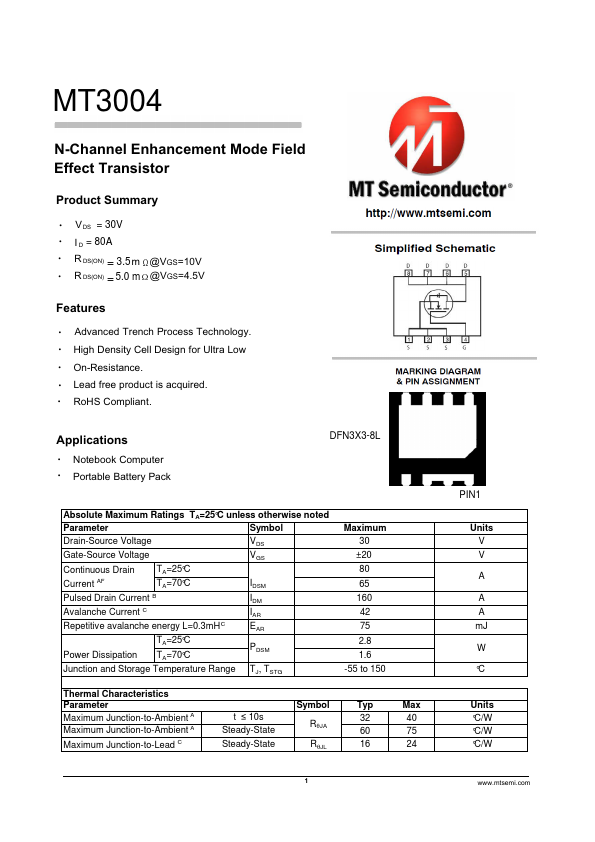

Preview of MT3004 PDF

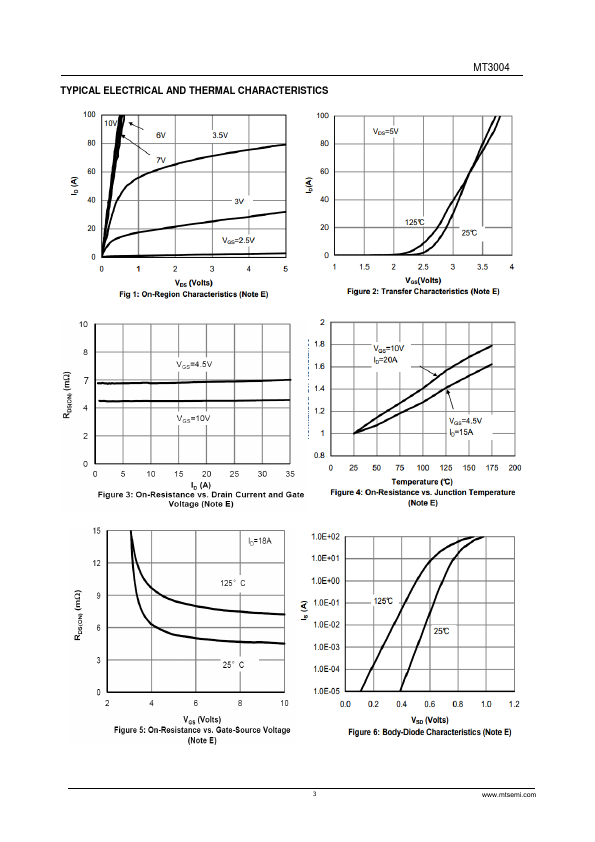

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MT3004
Manufacturer
MT Semiconductor
File Size
625.03 KB
Datasheet
MT3004-MTSemiconductor.pdf
Description
N-Channel MOSFET
