MT301, MT301-MOS P-Channel Power MOSFET

MT301 Description

Mos-Tech Semiconductor Co.,LTD.P-Channel Enhancement Mode Field Effect Transistor MT301 .

MT301 Features

* Super high dense cell design for low RDS(ON)
* Rugged and reliable
* Simple drive requirement
* TO-252-5L package PRODUCT SUMMARY VDSS ID RDS(ON) (mΩ) Typ -30V -30A 28@ VGS=-10V 35 @ VGS=-4.5V NOTE：The MT301 is available in a lead-free package S1 S2 G1 G2 D1 D2 ABSOLUTE MAX

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MT301, MT301-MOS. Please refer to the document for exact specifications by model.

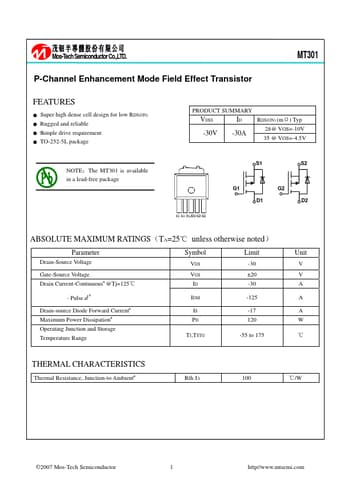

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MT301, MT301-MOS
Manufacturer
MOS-TECH
File Size
258.08 KB
Datasheet
MT301-MOS-TECH.pdf
Description
P-Channel Power MOSFET
Note
This datasheet PDF includes multiple part numbers: MT301, MT301-MOS.
Please refer to the document for exact specifications by model.
