MT3113 Datasheet - MT Semiconductor

MT3113 125V 130A N-Channel Power MOSFET

MT3113/B 1&KDQQHO9$3RZHU026)(7 )HDWXUHV ‡ Typ RDS (on)=7.7m: / VGS =10V,ID =65A ‡ Fast Switching Speed ‡ Low Gate Charge ‡100% avalanche tested HQHUDO'HVFULSWLRQ This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low RDS(ON) and fast switching speed. $SSOLFDWLRQV ‡ '&'&SULPDUEULGJH.

MT3113-MTSemiconductor.pdf

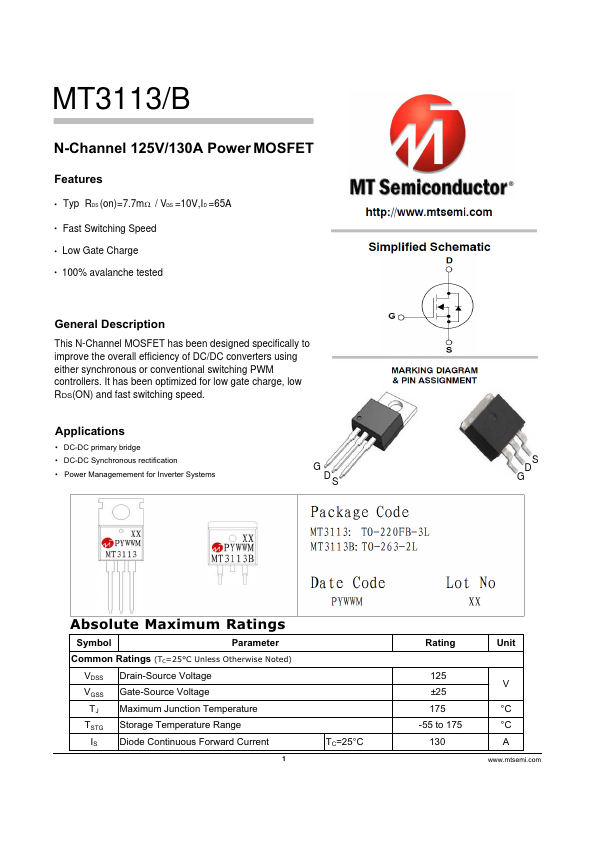

Preview of MT3113 PDF

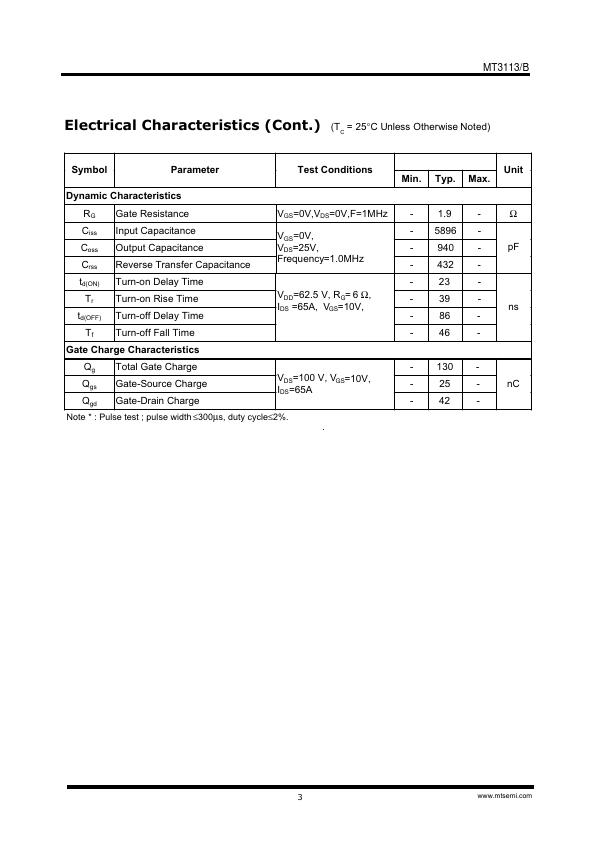

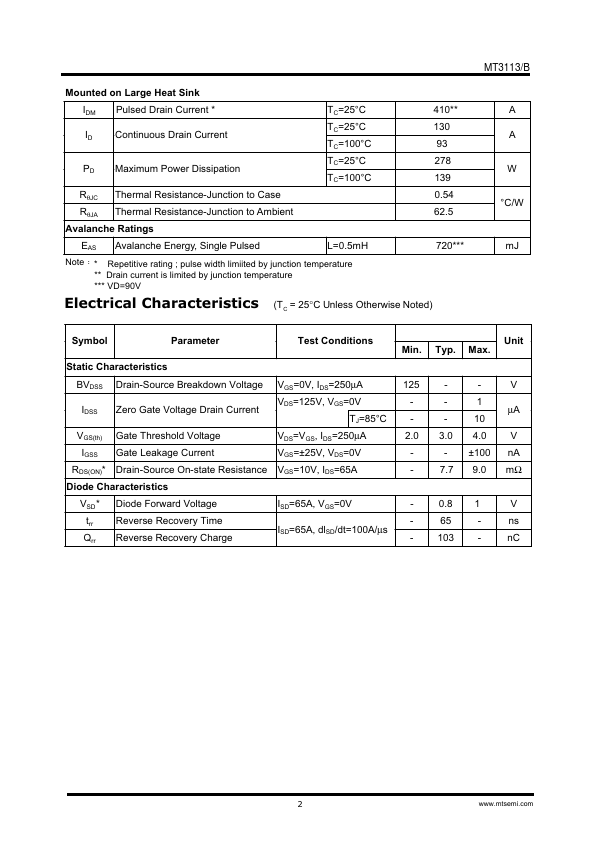

MT3113 Datasheet Preview Page 2 MT3113 Datasheet Preview Page 3

Datasheet Details

Part number:

MT3113

Manufacturer:

MT Semiconductor

File Size:

312.16 KB

Description:

125v 130a n-channel power mosfet.
