MT34P50 Datasheet - MT Semiconductor

MT34P50 P-Channel MOSFET

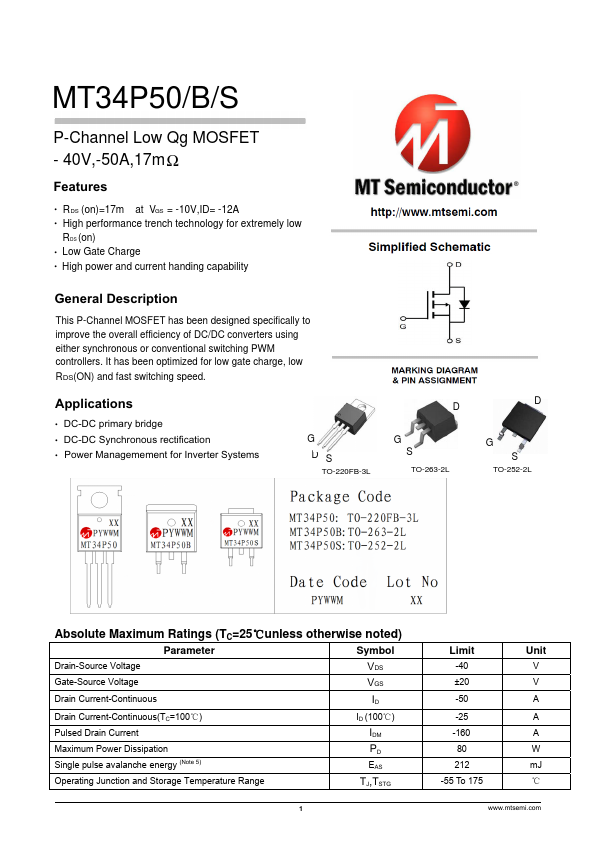

MT34P50/B/S P-Channel Low Q g MOSFET - 40V,-50A,17mΩ )HDWXUHV RDS (on)=17m at VGS = -10V,ID= -12A High performance trench technology for extremely low RDS (on) Low Gate Charge High power and current handing capability HQHUDO'HVFULSWLRQ This P-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate cha.

MT34P50-MTSemiconductor.pdf
