MT34P50S, MT34P50 Datasheet - MT Semiconductor

MT34P50S P-Channel MOSFET

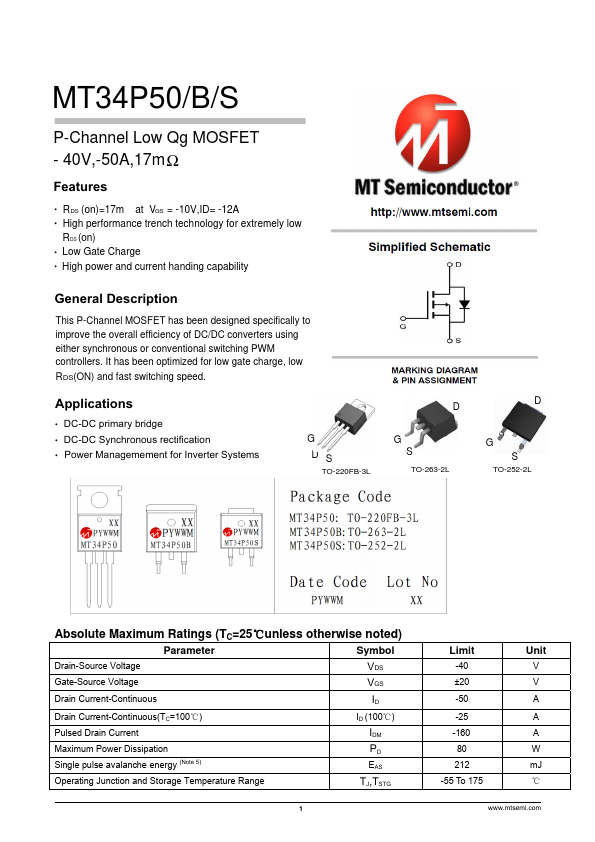

MT34P50/B/S P-Channel Low Q g MOSFET   - 40V,-50A,17mΩ )HDWXUHV ‡ RDS (on)=17m at VGS = -10V,ID= -12A ‡ High performance trench technology for extremely low RDS (on) ‡ Low Gate Charge ‡High power and current handing capability HQHUDO'HVFULSWLRQ This P-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate cha.

MT34P50-MTSemiconductor.pdf

This datasheet PDF includes multiple part numbers: MT34P50S, MT34P50. Please refer to the document for exact specifications by model.

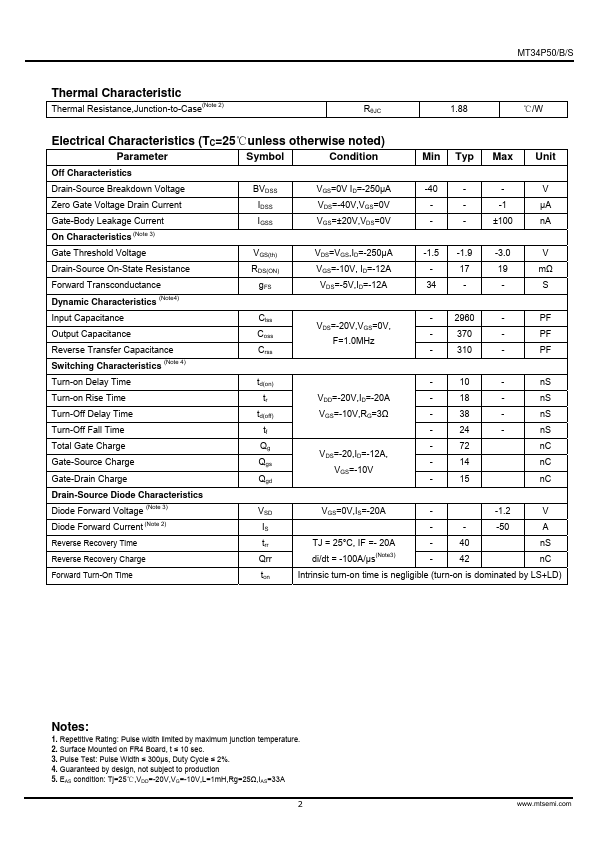

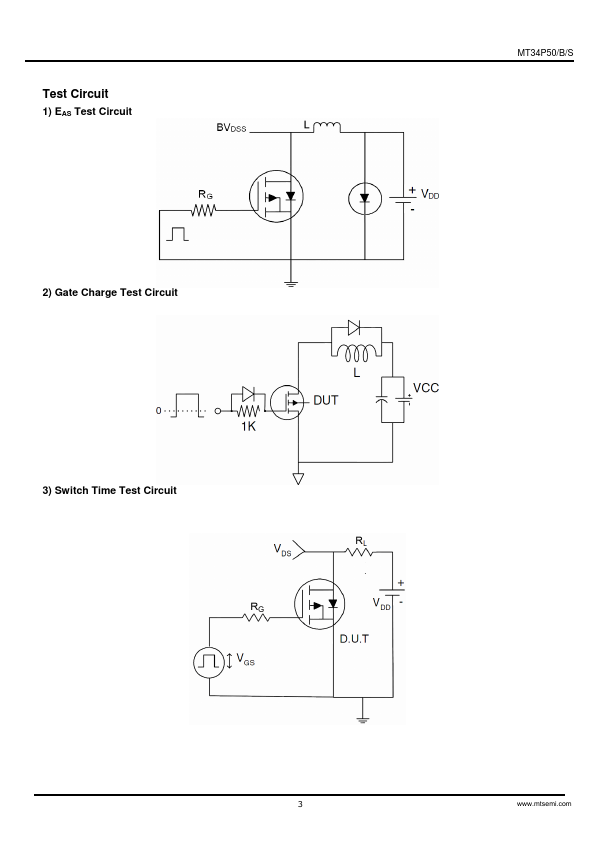

MT34P50S Datasheet Preview Page 2 MT34P50S Datasheet Preview Page 3

Datasheet Details

Part number:

MT34P50S, MT34P50

Manufacturer:

MT Semiconductor

File Size:

1.08 MB

Description:

P-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: MT34P50S, MT34P50.
Please refer to the document for exact specifications by model.
