MT4613 Dual N- & P-Channel Power MOSFET

MT Semiconductor

Description

MT4613 Dual N & P-Channel PowerTrench® MOSFET *HQHUDO'HVFULSWLRQ These dual N and P-Channel enhancement mode power field effect transisto.

📥 Download Datasheet

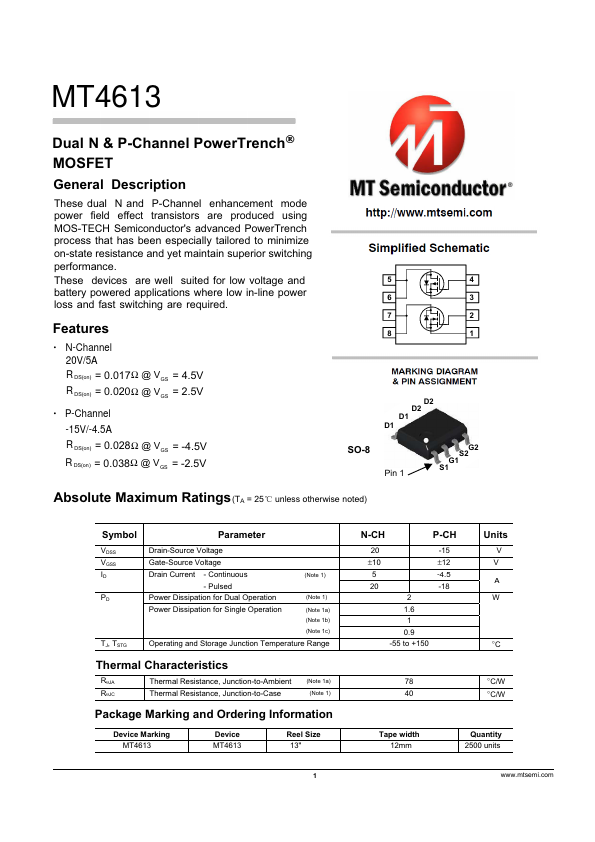

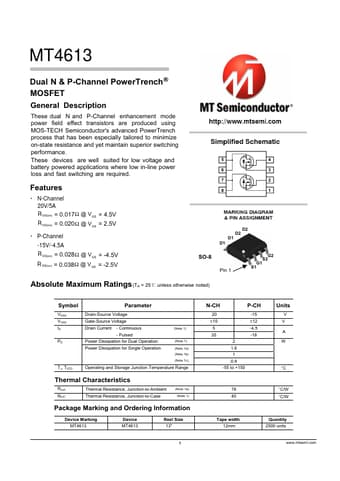

MT4613 Datasheet Preview — Preview of MT4613 PDF

Datasheet Specifications

Part number: MT4613
Manufacturer: MT Semiconductor
File Size: 2.63 MB
Datasheet: MT4613-MTSemiconductor.pdf
Description: Dual N- & P-Channel Power MOSFET

Features

* N-Channel 20V/5A R DS(on) = 0.017Ω @ VGS = 4.5V R DS(on) = 0.020Ω @ VGS = 2.5V P-Channel -15V/-4.5A R DS(on) = 0.028Ω @ VGS = -4.5V R DS(on) = 0.038Ω @ VGS = -2.5V 5 4 6 3 7 2 8 1 DD2 DD2 DD1 DD1 SO-8 Pin 1 SO-8 G2 S2 G G1 S S1 S S Absolute Maximum Ratings(TA = 25 unless otherwis
