MT4600

P & N-Channel 100-V(D-S) MOSFET

MT4600 Features

* ‹ APPLICATIONS ¾ 100V/9.8A, RDS(ON) = 155mȍ @ VGS = 10V ¾ -100V/-9A, RDS(ON) = 160mȍ @ VGS = -10V ¾ 100V/9.8A, RDS(ON) = 175mȍ @ VGS = 4.5V ¾ -100V/-9A, RDS(ON) = 185mȍ @ VGS = -4.5V ¾ Fast switching speed ¾ SOP-8 package design ¾ Power Management in Note ¾ Portable Equipment ¾ Battery Powered Sy

MT4600 General Description

These miniature surface mount MOSFETs utilize High Cell Density process. Low RDS(on) assures minimal power loss and conserves energy, making this device ideal for use in power management circuitry. Typical applications are PWM DC-DC converters, power management in portable and battery-powered produ.

MT4600 Datasheet (795.18 KB)

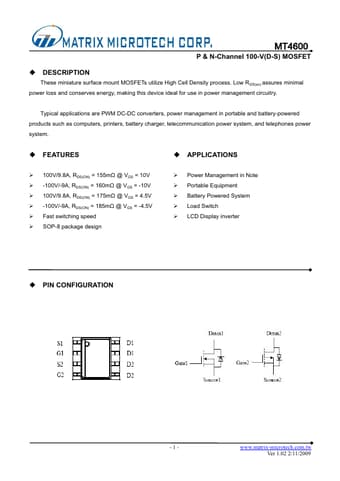

Preview of MT4600 PDF

Datasheet Details

Part number:

MT4600

Manufacturer:

Matrix Microtech

File Size:

795.18 KB

Description:

P & n-channel 100-v(d-s) mosfet.
