MT4435 Datasheet - Matrix Microtech

MT4435_MatrixMicrotech.pdf

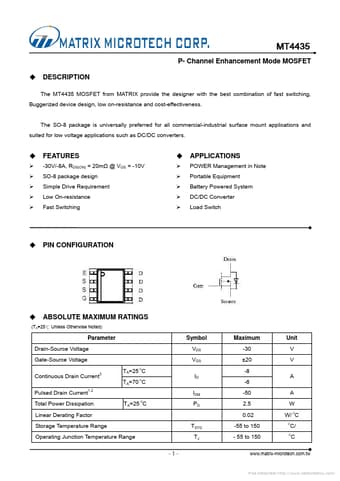

Preview of MT4435 PDF
MT4435 Datasheet Preview Page 2 MT4435 Datasheet Preview Page 3

Datasheet Details

Part number:

MT4435

Manufacturer:

Matrix Microtech

File Size:

279.95 KB

Description:

P-channel enhancement mode mosfet.

MT4435, P-Channel Enhancement Mode MOSFET

The MT4435 MOSFET from MATRIX provide the designer with the best combination of fast switching, Buggerized device design, low on-resistance and cost-effectiveness.

The SO-8 package is universally preferred for all commercial-industrial surface mount applications and suited for low voltage applicatio

MT4435 Features

* -30V/-8A, RDS(ON) = 20mΩ @ VGS = -10V SO-8 package design Simple Drive Requirement Low On-resistance Fast Switching ‹ ¾ ¾ ¾ ¾ ¾ APPLICATIONS POWER Management in Note Portable Equipment Battery Powered System DC/DC Converter Load Switch ‹ PIN CONFIGURATION ‹ ABSOLUTE MAXIMUM RATINGS Parameter S
