MT4599C Datasheet - Matrix Microtech

MT4599C - P & N-Channel 60-V(D-S) MOSFET

These miniature surface mount MOSFETs utilize High Cell Density process.

Low RDS(on) assures minimal power loss and conserves energy, making this device ideal for use in power management circuitry.

Typical applications are PWM DC-DC converters, power management in portable and battery-powered produ

MT4599C Features

* ‹ APPLICATIONS ¾ 60V/4.5A, RDS(ON) = 58mΩ @ VGS = 10V ¾ 60V/4.0A, RDS(ON) = 85mΩ @ VGS = 4.5V ¾ -60V/-3.5A, RDS(ON) = 90mΩ @ VGS = -10V ¾ -60V/-3.0A, RDS(ON) =135mΩ @ VGS = -4.5V ¾ Fast switching speed ¾ SOP-8 & TO-252 package design ¾ Power Management in Note ¾ Portable Equipment ¾ Battery Power

MT4599C-MatrixMicrotech.pdf

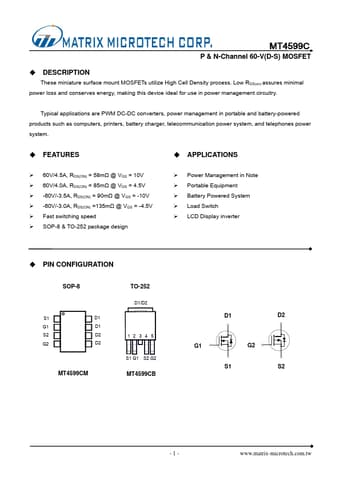

Preview of MT4599C PDF
MT4599C Datasheet Preview Page 2 MT4599C Datasheet Preview Page 3

Datasheet Details

Part number:

MT4599C

Manufacturer:

Matrix Microtech

File Size:

542.07 KB

Description:

P & n-channel 60-v(d-s) mosfet.
