MT4505

High Performance Ratiometric Linear Hall Effect Sensor

Magn Tek

MT4505 Features

* Single current sinking or current sourcing output Ratiometric rail to rail linear output Precise sensitivity and temperature compensation Wide Operating Voltage Range: Supply Voltage 3.0~15V Sensitivity: 2.5 mV/Gauss ℃ ℃Specified Operating Temperature Range: From

* 40 ~150 Lead Free Package F

MT4505 General Description

Flat TO-92 package, bulk packaging (1000pcs/bag) Flat TO-92 package, Radial lead, bulk packaging (1000pcs/bag) SOT-89B package, tape and reel packaging (1000pcs/bag) General Description －The MT4505 family, produced with Bipolar technology, It is high performance small versatile linear Hall ef.

MT4505 Datasheet (956.63 KB)

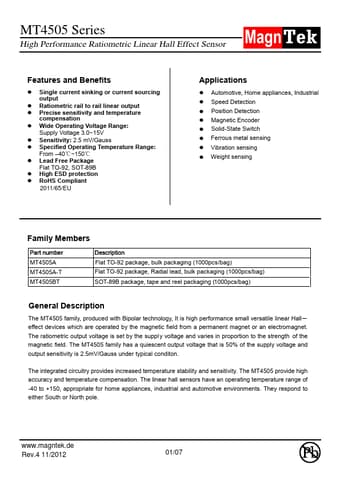

MT4505 Datasheet Preview — Preview of MT4505 PDF

Datasheet Details

Part number:

MT4505

Manufacturer:

Magn Tek

File Size:

956.63 KB

Description:

High performance ratiometric linear hall effect sensor.
