MT4506

High Performance Ratiometric Linear Hall Effect Sensor

Magn Tek

MT4506 Features

* Single current sinking or current sourcing output Ratiometric rail to rail linear output Precise sensitivity and temperature compensation Wide Operating Voltage Range: Supply Voltage 3.0~15V Sensitivity: 3.0 mV/Gauss ℃ ℃Specified Operating Temperature Range: From

* 40 ~150 Lead Free Package F

MT4506 General Description

Flat TO-92 package, bulk packaging (1000pcs/bag) Flat TO-92 package, Radial lead, bulk packaging (1000pcs/bag) SOT-89B package, tape and reel packaging (1000pcs/bag) General Description －The MT4506 family, produced with Bipolar technology, It is high performance small versatile linear Hall ef.

MT4506 Datasheet (955.21 KB)

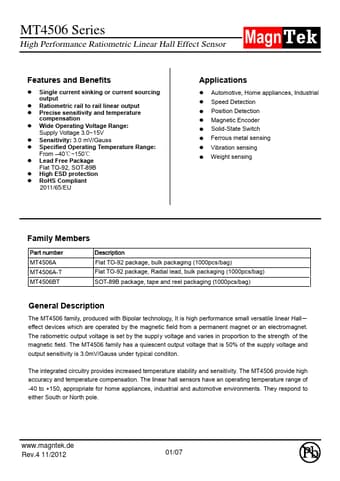

MT4506 Datasheet Preview — Preview of MT4506 PDF

Datasheet Details

Part number:

MT4506

Manufacturer:

Magn Tek

File Size:

955.21 KB

Description:

High performance ratiometric linear hall effect sensor.
