MM20G3R135B - IGBT

Datasheet Summary

Features

1350V Reverse conducting IGBT with monolithic body diode.
VCE(sat) with positive temperature coefficient.
Low switching losses.
Low EMI.

MacMic

📥 Download Datasheet

Datasheet Details

Part number	MM20G3R135B
Manufacturer	MacMic
File Size	509.88 KB
Description	IGBT
Datasheet	MM20G3R135B Datasheet
Additional preview pages of the MM20G3R135B datasheet.

📁 Similar Datasheet

MM2001 - Capacitive humidity sensor (MaxDetect)
MM204 - METAL FILM RESISTOR (HITANO)
MM207 - METAL FILM RESISTOR (HITANO)
MM2101 - 1024-Bit Static RAMs (National Semiconductor)
MM2101-1 - 1024-Bit Static RAMs (National Semiconductor)
MM2101-2 - 1024-Bit Static RAMs (National Semiconductor)
MM2102A - 1024-Bit Static RAMs (National Semiconductor)
MM2102AL - 1024-Bit Static RAMs (National Semiconductor)
MM2111 - 1024-bit (256 x 4) static MOS RAM with common I/O and output disable (National Semiconductor)
MM2111-1 - 1024-bit (256 x 4) static MOS RAM with common I/O and output disable (National Semiconductor)

Other Datasheets by MacMic

Full PDF Text Transcription

Click to expand full text

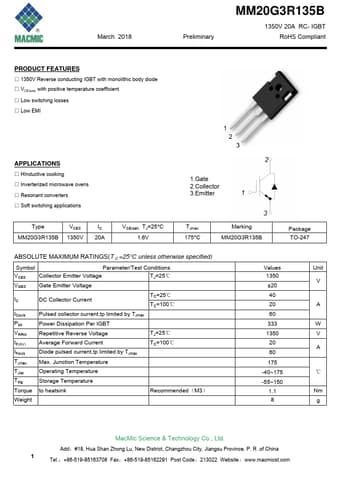

March 2018 Preliminary MM20G3R135B 1350V 20A RC- IGBT RoHS Compliant PRODUCT FEATURES □ 1350V Reverse conducting IGBT with monolithic body diode □ VCE(sat) with positive temperature coefficient □ Low switching losses □ Low EMI APPLICATIONS □ HInductive cooking □ Inverterized microwave ovens □ Resonant converters □ Soft switching applications 1 2 3 1.Gate 2.Collector 3.Emitter Type VCES IC MM20G3R135B 1350V 20A VCE(sat) TJ=25°C 1.
