MM20G3T135B - IGBT

MM20G3T135B Description

April 2020 Version 02 MM20G3T135B 1350V 20A IGBT RoHS Compliant PRODUCT .

MM20G3T135B Features

* 1350V IGBT chip in trench FS-technology
* Low switching losses
* VCE(sat) with positive temperature coefficient
* Fast switching and short tail current

MM20G3T135B Applications

* Induction Heating
* Soft Switching Application
* Inverter 1 2 3 1.Gate 2.Collector 3.Emitter Type VCES IC MM20G3T135B 1350V 20A VCE(sat) TJ=25°C 1.65V TJmax 175°C Marking MM20G3T135B Package TO-247 ABSOLUTE MAXIMUM RATINGS(T C =25°C unless otherwise specified) Sy

📥 Download Datasheet

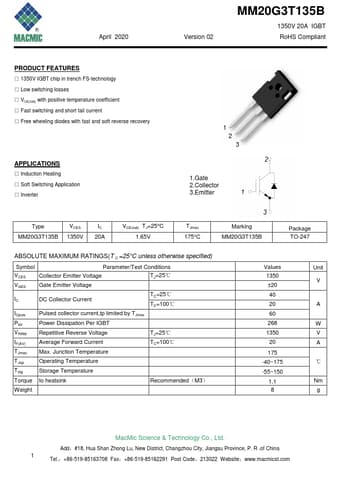

Preview of MM20G3T135B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MM20G3T135B
Manufacturer
MacMic
File Size
345.51 KB
Datasheet
MM20G3T135B-MacMic.pdf
Description
IGBT
