MBI5030 - 16-Channel Constant Current LED Driver

Datasheet Summary

Description

MBI5030 is designed for LED video applications using internal Pulse Width Modulation (PWM) control with selectable 16-bit or 12-bit color depth.

Features

  • Datasheet MBI5030 16-Channel Constant Current LED Driver With 16-bit PWM Control.
  • Backward compatible with MBI5026 in package.
  • 16 constant-current output channels.
  • 16-bit/12-bit color depth PWM control.
  • Scrambled-PWM technology to improve refresh rate.
  • Compulsory open circuit detection to detect individual LED errors Full panel, data independent Silent error detection with 0.1mA.
  • 8-bit programmable output current gain.
  • Over temperature warning/protection.

📥 Download Datasheet

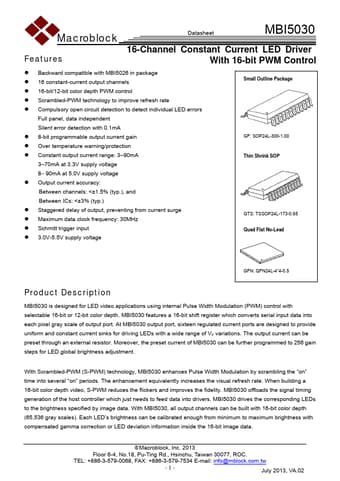

Datasheet preview – MBI5030

Datasheet Details

Part number MBI5030
Manufacturer Macroblock
File Size 498.60 KB
Description 16-Channel Constant Current LED Driver
Datasheet download datasheet MBI5030 Datasheet
Additional preview pages of the MBI5030 datasheet.

📁 Similar Datasheet

  • MBI5020 - 16-bit constant current LED driver (H&M semi)
Other Datasheets by Macroblock
  • MBI5031 - 16-Channel Constant Current LED Driver
  • MBI5034 - 16-Channel Constant Current LED Sink Driver
  • MBI5035 - 16-Channel Constant Current LED Sink Driver
  • MBI5037 - 16-Channel Constant Current LED Driver
  • MBI5038 - 16-Channel Constant Current LED Driver
  • MBI5039 - 16-Channel Constant Current LED Sink Driver
  • MBI5001 - 8-bit Constant Current LED Driver
  • MBI5016 - 16-bit Constant Current LED Sink Driver

Full PDF Text Transcription

Click to expand full text
Macroblock Features Datasheet MBI5030 16-Channel Constant Current LED Driver With 16-bit PWM Control  Backward compatible with MBI5026 in package  16 constant-current output channels  16-bit/12-bit color depth PWM control  Scrambled-PWM technology to improve refresh rate  Compulsory open circuit detection to detect individual LED errors Full panel, data independent Silent error detection with 0.1mA  8-bit programmable output current gain  Over temperature warning/protection  Constant output current range: 3~90mA 3~70mA at 3.3V supply voltage 8~ 90mA at 5.0V supply voltage  Output current accuracy: Between channels: <±1.5% (typ.), and Between ICs: <±3% (typ.
