MBI6650 Datasheet - Macroblock

1.2A DC/DC Converter

MBI6650 Features

* z z z z z z z 1.2A Constant Output Current Preliminary Datasheet MBI6650 1.2A DC/DC Converter Surface Mount Device 93% Efficiency @ input voltage 13V, 350mA, 3-LED 9~36V Input Voltage Range Hysteretic PFM Improves Efficiency at Light Loads Settable Output Current Power Switch Full Protection: The

MBI6650 General Description

The MBI6650 is a high efficiency, constant current, step-down DC/DC converter, designed to deliver constant current to high power LED with only 4 external components. The MBI6650 is specifically designed with hysteretic PFM control scheme to enhance the efficiency up to 93%. Output current of the MB.

MBI6650 Datasheet (531.91 KB)

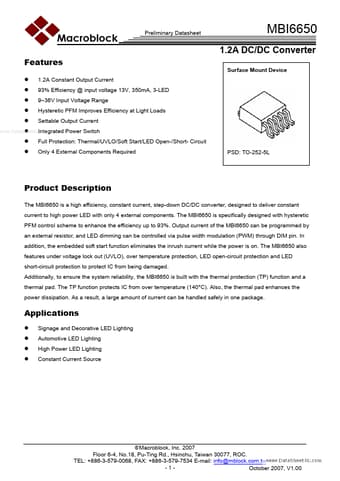

MBI6650 Datasheet Preview — Preview of MBI6650 PDF

Datasheet Details

Part number:

MBI6650

Manufacturer:

Macroblock

File Size:

531.91 KB

Description:

1.2a dc/dc converter.
