MBI6655 - 1A LED Driver

Datasheet Summary

Description

provide a cost-effective design solution for interior/exterior illumination applications.

LED with minimum 5 external components.

Features

  • Maximum 1A constant output current.
  • 97% efficiency @ input voltage 12V, 350mA, 3-LED.
  • 6~36V input voltage range.
  • Hysteretic PFM eliminates external compensation design.
  • Settable constant output current.
  • Integrated power switch with 0.3ohm low Rds(on).
  • Full protections: Start-Up/OCP/ Thermal/ LED Open-/ Short-Circuit.
  • Only 5 external components required Small Outline Transistor GSB: SOT-89-5L Small Outline Package Product.

📥 Download Datasheet

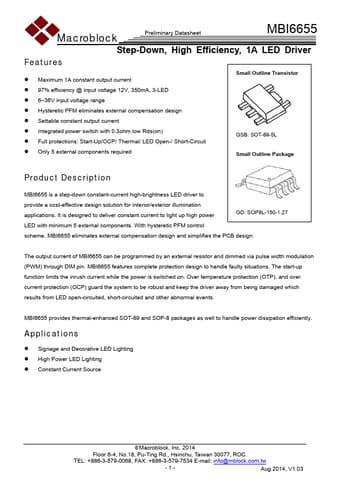

Datasheet preview – MBI6655

Datasheet Details

Part number MBI6655
Manufacturer Macroblock
File Size 921.57 KB
Description 1A LED Driver
Datasheet download datasheet MBI6655 Datasheet
Additional preview pages of the MBI6655 datasheet.

📁 Similar Datasheet

  • MBI5020 - 16-bit constant current LED driver (H&M semi)
Other Datasheets by Macroblock

Full PDF Text Transcription

Click to expand full text
Macroblock Preliminary Datasheet MBI6655 Step-Down, High Efficiency, 1A LED Driver Features  Maximum 1A constant output current  97% efficiency @ input voltage 12V, 350mA, 3-LED  6~36V input voltage range  Hysteretic PFM eliminates external compensation design  Settable constant output current  Integrated power switch with 0.3ohm low Rds(on)  Full protections: Start-Up/OCP/ Thermal/ LED Open-/ Short-Circuit  Only 5 external components required Small Outline Transistor GSB: SOT-89-5L Small Outline Package Product Description MBI6655 is a step-down constant-current high-brightness LED driver to provide a cost-effective design solution for interior/exterior illumination applications. It is designed to deliver constant current to light up high power GD: SOP8L-150-1.
