MBI6652

Step-Down LED Driver

MBI6652 Features

* Maximum constant output current: 750mA

* 96% efficiency @ input voltage 12V, 350mA, 3-LED

* 6~30V input voltage range

* Hysteretic PFM improves efficiency at light loading

* Settable output current

* Integrated power switch with 0.45ohm low Rds(on)

* Full protection: Th

MBI6652 General Description

The MBI6652 is a high efficiency, constant current and step-down DC/DC converter. It is designed to deliver constant current to light up high power LED with only 4 external components. With hysteretic PFM control scheme, MBI6652 improves the efficiency of light loading. The output current of MBI6652.

MBI6652 Datasheet (1.26 MB)

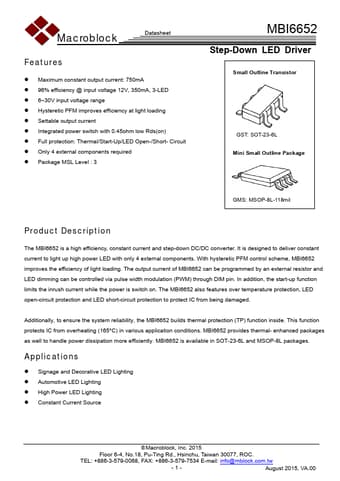

Preview of MBI6652 PDF

Datasheet Details

Part number:

MBI6652

Manufacturer:

Macroblock

File Size:

1.26 MB

Description:

Step-down led driver.
