MT1401A, MT1401 Hall-Effect Magnetic Position Sensors

MagnTek

Description

MT1401 Series CMOS, Latch, Hall-Effect Magnetic Position Sensors .
Flat TO-92 package, bulk packaging (1000pcs/bag) Flat TO-92 package, Radial lead, bulk packaging (1000pcs/bag) SOT-23 package, tape and reel packaging.

📥 Download Datasheet

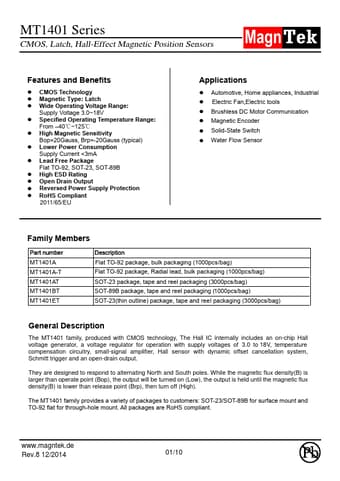

MT1401A Datasheet Preview — This datasheet PDF includes multiple part numbers: MT1401A, MT1401. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MT1401A, MT1401
Manufacturer: MagnTek
File Size: 1.02 MB
Datasheet: MT1401-MagnTek.pdf
Description: Hall-Effect Magnetic Position Sensors
Note: This datasheet PDF includes multiple part numbers: MT1401A, MT1401.
Please refer to the document for exact specifications by model.

Features

* CMOS Technology Magnetic Type: Latch Wide Operating Voltage Range: Supply Voltage 3.0~18V ℃ ℃Specified Operating Temperature Range: From
* 40 ~125 High Magnetic Sensitivity Bop=20Gauss, Brp=-20Gauss (typical) Lower Power Consumption Supply Current
