MT1471 - Synchronous Step-Down Converter

MT1471 Description

MT1471 3A,4.5V-16V Input,500kHz Synchronous Step-Down Converter .
The MT1471 is a fully integrated, high efficiency 3A synchronous rectified step-down converter.

MT1471 Features

* High Efficiency: Up to 96%
* 500KHz Frequency Operation
* 3A Output Current
* No Schottky Diode Required
* 4.5V to 16V Input Voltage Range
* 0.8V Reference
* Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
* Integrated internal

MT1471 Applications

* Distributed Power Systems
* Digital Set Top Boxes
* Flat Panel Television and Monitors
* Wireless and DSL Modems
* Notebook Computer TYPICAL APPLICATION VIN CIN 22μF C2 1uF BS VIN SW MT1471 EN FB GND L 10μH R1 100k 1% R2 19k 1% VOUT C1 22pF opt. COUT 22μF
* 3 Fi

📥 Download Datasheet

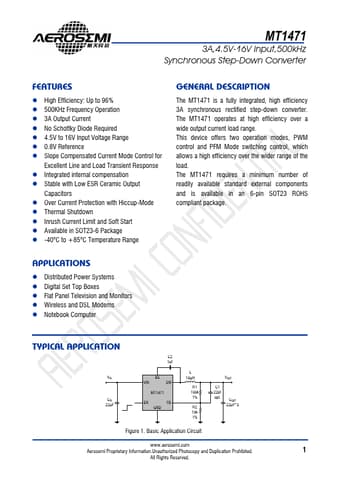

Preview of MT1471 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MT1471
Manufacturer
Aerosemi
File Size
650.95 KB
Datasheet
MT1471-Aerosemi.pdf
Description
Synchronous Step-Down Converter
