MT1470 - Synchronous Step-Down Converter

MT1470 Description

AEROSEMI MT1470 CASC 2A,4.5V-21V Input,500kHz Synchronous Step-Down Converter .
The MT1470 is a fully integrated, high efficiency 2A synchronous rectified step-down converter.

MT1470 Features

* High Efficiency: Up to 96%
* 500KHz Frequency Operation
* 2A Output Current
* No Schottky Diode Required
* 4.5V to 21V Input Voltage Range
* 0.8V Reference
* Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
* Integrated internal

MT1470 Applications

* Distributed Power Systems
* Digital Set Top Boxes
* Flat Panel Television and Monitors
* Wireless and DSL Modems
* Notebook Computer TYPICAL APPLICATION VIN CIN 22μF C2 1uF BS VIN SW MT1470 EN FB GND L 10μH R1 100k 1% R2 19k 1% Figure 1. Basic Application Circuit VO

📥 Download Datasheet

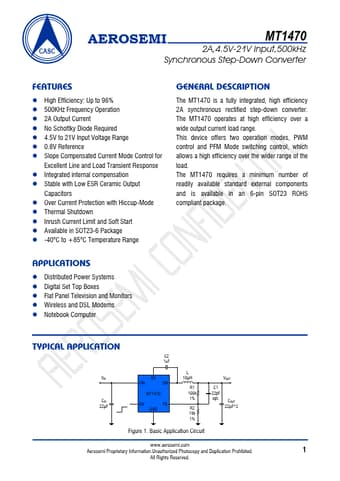

Preview of MT1470 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MT1470
Manufacturer
Aerosemi
File Size
868.06 KB
Datasheet
MT1470-Aerosemi.pdf
Description
Synchronous Step-Down Converter
