MDF4N60D - N-Channel Trench MOSFET

Name: MDF4N60D
SKU: MDF4N60D-1107964

MagnaChip

📥 Download Datasheet

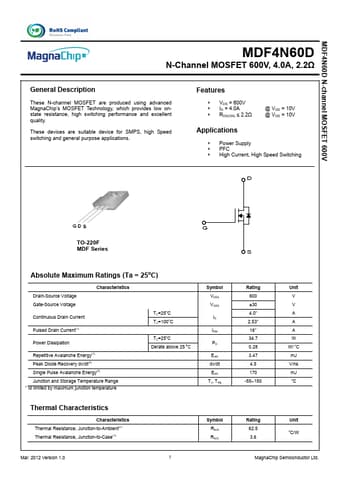

MDF4N60D Datasheet Preview — Preview of MDF4N60D PDF

Datasheet Details

Part number	MDF4N60D
Manufacturer	MagnaChip
File Size	844.11 KB
Description	N-Channel Trench MOSFET
Datasheet	MDF4N60D-MagnaChip.pdf

MDF4N60D Product details

Description

These N-channel MOSFET are produced using advanced MagnaChip’s MOSFET Technology, which provides low onstate resistance, high switching performance and excellent quality.

Features

VDS = 600V ID = 4.0A RDS(ON) ≤ 2.2Ω @ VGS = 10V @ VGS = 10V.
