MDV1522 Datasheet, Mosfet, MagnaChip

MDV1522 Features

  • Mosfet  VDS = 30V  ID = 28A @VGS = 10V  RDS(ON) < 4.9mΩ @VGS = 10V < 6.8mΩ @VGS = 4.5V  100% UIL Tested  100% Rg Tested D DD DD DD DD S SSG GS SS PDFN33 Absolute Maximum Ra

PDF File Details

Part number:

MDV1522

Manufacturer:

MagnaChip

File Size:

1.08MB

Download:

📄 Datasheet

Description:

N-channel trench mosfet. The MDV1522 uses advanced Magnachip’s MOSFET Technology, which provides high performance in on-state resistance, fast switching perfo

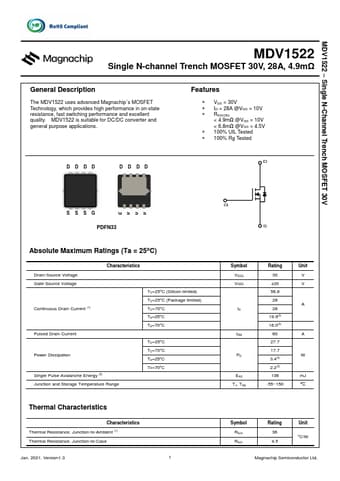

Datasheet Preview: MDV1522 📥 Download PDF (1.08MB)
Page 2 of MDV1522 Page 3 of MDV1522

MDV1522 Application

  • Applications Features  VDS = 30V  ID = 28A @VGS = 10V  RDS(ON) < 4.9mΩ @VGS = 10V < 6.8mΩ @VGS = 4.5V  100% UIL Tested  100% Rg Teste
