MDV1524 - N-Channel Trench MOSFET

MagnaChip

MDV1524 Datasheet Preview — Preview of MDV1524 PDF

Datasheet Details

Part number	MDV1524
Manufacturer	MagnaChip
File Size	1.08 MB
Description	N-Channel Trench MOSFET
Datasheet	MDV1524-MagnaChip.pdf

MDV1524 Product details

Description

The MDV1524 uses advanced Magnachip’s MOSFET Technology, which provides high performance in on-state resistance, fast switching performance and excellent quality.

Features

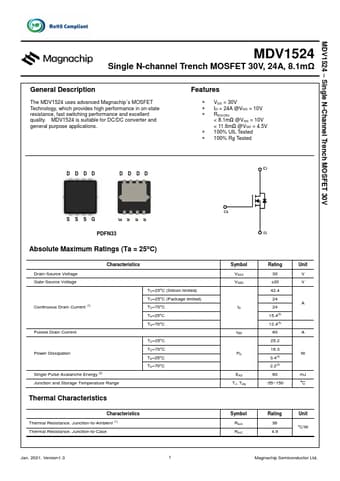

 VDS = 30V  ID = 24A @VGS = 10V  RDS(ON) < 8.1mΩ @VGS = 10V < 11.6mΩ @VGS = 4.5V  100% UIL Tested  100% Rg Tested D DD DD DD DD S SSG GS SS PDFN33 Absolute Maximum Ratings (Ta = 25oC) Drain-Source Voltage Gate-Source Voltage Characteristics Continuous Drain Current (1) Pulsed Drain Current Power Dissipation Single Pulse Avalanche Energy (2) Junction and Storage Temperature Range TC=25oC (Silicon limited) TC=25oC (Package limited) TC=70oC TA=25oC TA=70oC TC=25oC TC=70oC TA.
