MDV04-600 Datasheet - ST Microelectronics

HIGH VOLTAGE ULTRA-FAST DIODE FOR VIDEO

MDV04-600 General Description

High voltage ultra-fast diode especially designed for modulation and flyback rectification in standard and high resolution displays for TV’s and monitors. The device is packaged in a DO-201AD axial enveloppe. ABSOLUTE RATINGS (limiting values) Symbol VRRM IF peak IFRM IFSM Tstg Tj Parameter Repetiti.

MDV04-600 Datasheet (39.99 KB)

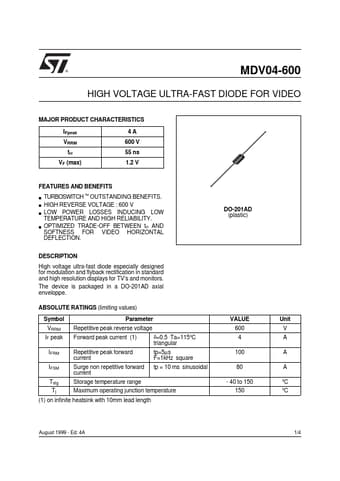

Preview of MDV04-600 PDF

Datasheet Details

Part number:

MDV04-600

Manufacturer:

STMicroelectronics ↗

File Size:

39.99 KB

Description:

High voltage ultra-fast diode for video.
