MMF80R650QZ - N-channel MOSFET

MMF80R650QZ Description

MMF80R650QZ Datasheet MMF80R650QZ 800V 0.65Ω N-channel MOSFET * .
MMF80R650QZ is power MOSFET using Magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge.

MMF80R650QZ Features

* Low Power Loss by High Speed Switching and Low On-Resistance
* Excellent ESD robustness
* 100% Avalanche Tested
* Green Package
* Pb Free Plating, Halogen Free

MMF80R650QZ Applications

* PFC Power Supply Stages
* Switching Applications
* Adapter
* Ordering Information Order Code Marking Temp. Range Package MMF80R650QZTH 80R650QZ -55 ~ 150 oC TO-220F(3L) Jan. 2021. Revision 1.1 1 Packing Tube RoHS Status Halogen Free Magnachip Semiconductor Ltd. MMF80R650Q

📥 Download Datasheet

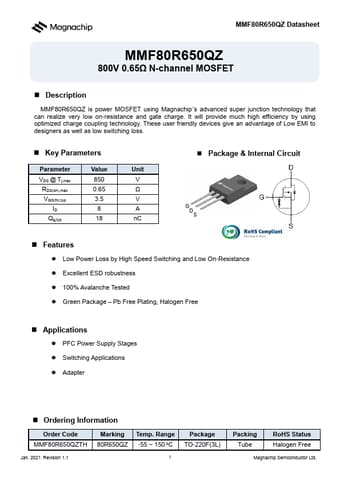

Preview of MMF80R650QZ PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMF80R650QZ
Manufacturer
MagnaChip
File Size
1.24 MB
Datasheet
MMF80R650QZ-MagnaChip.pdf
Description
N-channel MOSFET
