MPKB2SB100U120, MPKB2SA100U120 - 1200V FRD Module

MagnaChip

📥 Download Datasheet

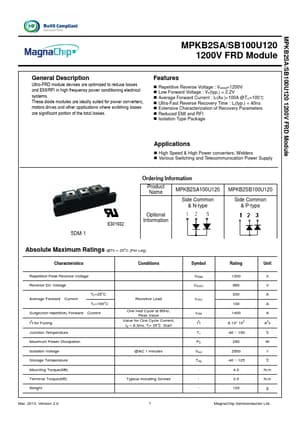

MPKB2SB100U120 Datasheet Preview — This datasheet PDF includes multiple part numbers: MPKB2SB100U120, MPKB2SA100U120. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MPKB2SB100U120, MPKB2SA100U120
Manufacturer	MagnaChip
File Size	604.05 KB
Description	1200V FRD Module
Datasheet	MPKB2SA100U120-MagnaChip.pdf
Note	This datasheet PDF includes multiple part numbers: MPKB2SB100U120, MPKB2SA100U120. Please refer to the document for exact specifications by model.

MPKB2SB100U120 Product details

Description

Ultra-FRD module devices are optimized to reduce losses and EMI/RFI in high frequency power conditioning electrical systems.

Features

Repetitive Reverse Voltage : VRRM=1200V.
Low Forward Voltage : VF(typ. ) = 2.2V.
Average Forward Current : IF(Av. )=100A @TC=100℃.
Ultra-Fast Reverse Recovery Time : trr(typ. ) = 40ns.
Extensive Characterization of Recovery Parameters.
Reduced EMI and RFI.
Isolation Type Package.
