MA2013 - 24V Output Boost Converter

Datasheet Summary

Description

The MA2013 is a constant frequency, current mode boost converter intended for small, low power applications.

The MA2013 input voltage ranging is from 2.3V to 12V.

The 1.2MHz switching frequency allows small external inductors.

Features

  • - 2.3V to 12V Operating Input Voltage Range - Maximum 24V Output Voltage - 1.2MHz Fixed Switching Frequency - 0.6V ±2% Feedback Voltage Range - Up to 90% Efficiency - Internal Soft-Start Function - Power Saving Mode at Light Load - Internal 80mΩ Power MOSFET - Over Current Protection (OCP) - Over Temperature Protection (OTP) - Input Under Voltage Lockout (UVLO) - -40°C to +85°C Temperature Range - Available in SOT23-6L Package .

📥 Download Datasheet

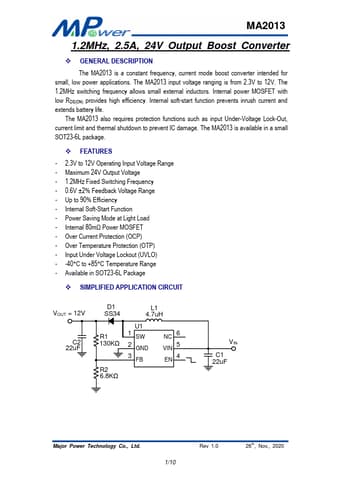

Datasheet preview – MA2013

Datasheet Details

Part number MA2013
Manufacturer Major Power Technology
File Size 180.60 KB
Description 24V Output Boost Converter
Datasheet download datasheet MA2013 Datasheet
