MA2068 - Zener Diode

This page provides the datasheet information for the MA2068, a member of the MA2062 Zener Diode family.

Datasheet Summary

Features

  • s.
  • High reliability, achieved by the combination the planar type and the glass seal.
  • Large power dissipation PD.
  • Wide voltage range: Zener voltage VZ = 5.1 V to 56.0 V 2.6.
  • 0.2 +0.4 Cathode 1st Band 2nd Band 3rd Band Anode.
  • Absolute Maximum Ratings Ta = 25°C Parameter Repetitive peak forward current Power dissipation.
  • 1 Non-repetitive reverse surge power dissipation.
  • 2 Junction temperature Storage temperature Symbol IFRM PD PZSM Tj Tstg Rating 40.

📥 Download Datasheet

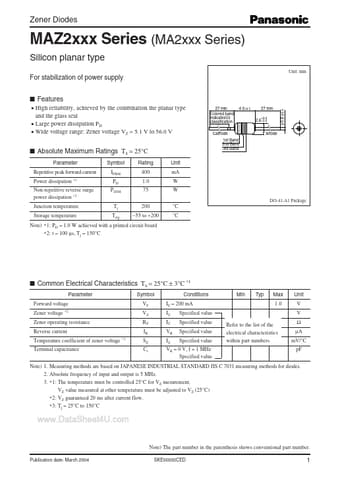

Datasheet preview – MA2068
