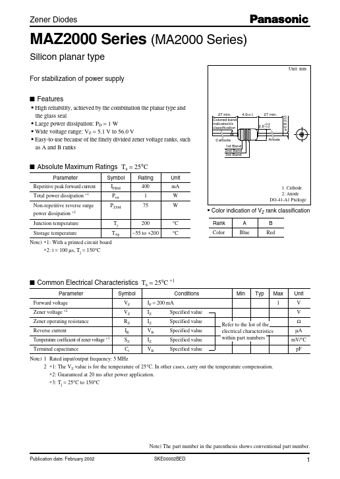

Zener Diodes
MAZ2000 Series (MA2000 Series)
Silicon planar type
Unit: mm
For stabilization of power supply s Features
• High reliability, achieved by the combination the planar type and the glass seal • Large power dissipation: PD = 1 W • Wide voltage range: VZ = 5.1 V to 56.0 V • Easy-to-use because of the finely divided zener voltage ranks, such as A and B ranks
φ 0.8±00.5
27 min. Colored band indicatesVz classification Cathode 1st Band 2nd Band 3rd Band 4.0±0.5 27 min. 2.6–0.2
+0.
