MA2180 - Zener Diode

Product Overview

Panasonic

Part number	MA2180
Manufacturer	Panasonic
File Size	88.78 KB
Description	Zener Diode
Datasheet	MA2180 Datasheet

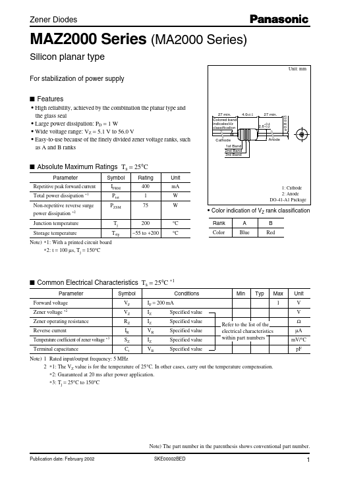

Additional preview pages of the MA2180 datasheet.

High reliability, achieved by the combination the planar type and the glass seal.
Large power dissipation: PD = 1 W.
Wide voltage range: VZ = 5.1 V to 56.0 V.
Easy-to-use because of the finely divided zener voltage ranks, such as A and B ranks φ 0.8±00.5 27 min. Colored band indicatesVz classification Cathode 1st Band 2nd Band 3rd Band 4.0±0.5 27 min. 2.6.
0.2 +0.4 Anode s Absolute Maximum Ratings Ta = 25°C Parameter Repetitive peak forward current T.
