MA21D38 - Silicon epitaxial planar type

Product Overview

Panasonic Semiconductor

📥 Download Datasheet

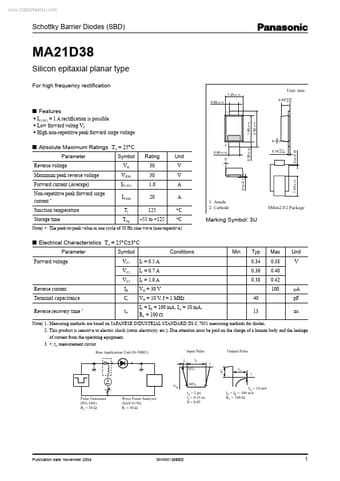

MA21D38 Silicon epitaxial planar type by Panasonic Semiconductor - Datasheet Preview — Datasheet preview – MA21D38

Datasheet Details

Part number	MA21D38
Manufacturer	Panasonic Semiconductor
File Size	318.12 KB
Description	Silicon epitaxial planar type
Datasheet	MA21D38 Datasheet
Additional preview pages of the MA21D38 datasheet.

Product details

Features

r>.
IF(AV) = 1 A rectiﬁcation is possible.
Low forward voltag VF.
High non-repetitive peak forward surge voltage　 1 1.90±0.10 2.50±0.10 0.30±0.10 Parameter Reverse voltage Maximum peak reverse voltage Forward current (Average) Non-repetitive peak forward surge current.
Junction temperature Storage time Symbol VR VRM IF(AV) IFSM Tj Tstg Rating 30 30 1.0 20 125.
55 to +125 Unit V V 0.80±0.10 5° 0 to 0.1 A A °C °C 1: Anode 2: Cathode SMini2-F2 Package.
