MG5223 S-Band Magnetron

Marconi Applied Technologies MG5223 S-Band Magnetron The data should be read in conjunction with the Magnetron Preamble. ABRIDGED DATA Fixed frequency pulse magnetron. Operating frequency . . . . . 3050 + 10 MHz Typical peak output power . . . . . . 30 kW Magnet . . . . . . . . . . . . . . . integral Output . . . . . . . . . . . . no. 10 waveguide Coupler . . . mates with NATO S.N. 5985-99-083-0058 Cooling . . . . . . . . . . . natural or forced-air GENERAL DATA Electrical Cathode .

MG5223 Features

* of and also reserves the right to change the specification of goods without notice. Marconi Applied Technologies accepts no liability beyond that set ou

MG5223 Datasheet (70.44 KB)

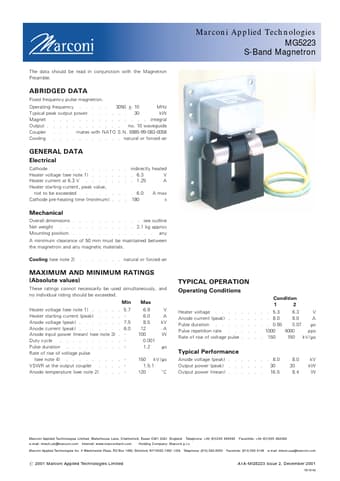

Preview of MG5223 PDF
