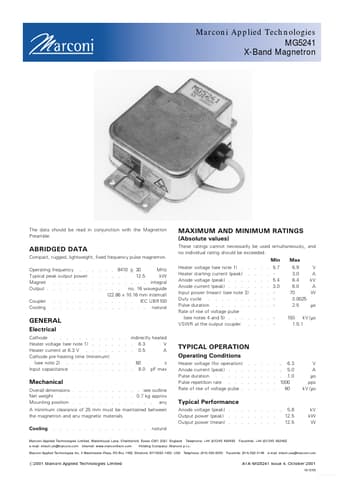

MG5241 X-Band Magnetron

Marconi Applied Technologies MG5241 X-Band Magnetron The data should be read in conjunction with the Magnetron Preamble. MAXIMUM AND MINIMUM RATINGS (Absolute values) These ratings cannot necessarily be used simultaneously, and no individual rating should be exceeded. Min Max Heater voltage (see note 1) . . . . . 5.7 6.9 V Heater starting current (peak) . . . . 3.0 A Anode voltage (peak) . . . . . . . 5.4 6.4 kV Anode current (peak) . . . . . . . 3.0 6.0 A Input power (mean) (see not.
