ME20P03F - P-Channel MOSFET

ME20P03F Description

P-Channel 30V (D-S) MOSFET ME20P03F/ME20P03F-G GENERAL .
The ME20P03F is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

ME20P03F Features

* RDS(ON)≦31.5mΩ@VGS=-10V
* RDS(ON)≦44mΩ@VGS=-4.5V
* Super high density cell design for extremely low RDS(ON)

ME20P03F Applications

* Power Management in Note book
* DC/DC Converter
* Load Switch
* LCD Display inverter (TO-220F) Top View
* TheOrdering Information: ME20P03F (Pb-free) ME4 ME20P03F-G (Green product-Halogen free) Absolute Maximum Ratings (TC=25℃ Unless Otherwise Noted) Parameter Symbol Ma

📥 Download Datasheet

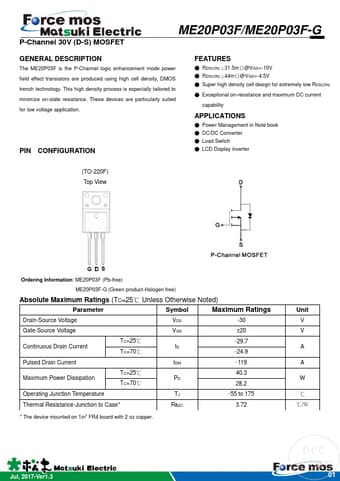

Preview of ME20P03F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ME20P03F
Manufacturer
Matsuki
File Size
904.75 KB
Datasheet
ME20P03F-Matsuki.pdf
Description
P-Channel MOSFET
