ME4626-G, ME4626, N-Channel MOSFET

ME4626/ME4626-G N-Channel 30-V(D-S) MOSFET Absolute Maximum Ratings (TA=25℃ Unless Otherwise Noted) GENERAL .
The ME4626 is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology.

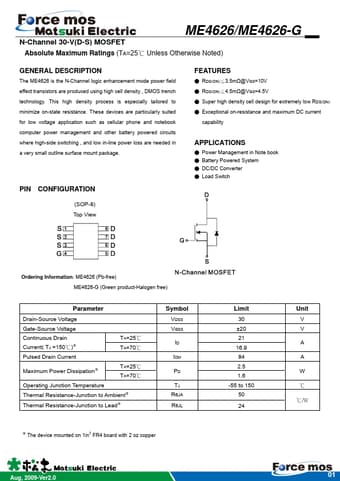

datasheet Preview Page 1 from Datasheet4u.com

ME4626-Matsuki.pdf

ME4626-G Datasheet Preview — This datasheet PDF includes multiple part numbers: ME4626-G, ME4626. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ME4626-G, ME4626

Manufacturer:

Matsuki

File Size:

809.53 KB

Description:

N-Channel MOSFET

Note:

This datasheet PDF includes multiple part numbers: ME4626-G, ME4626.
Please refer to the document for exact specifications by model.

Features

* RDS(ON)≦3.5mΩ@VGS=10V
* RDS(ON)≦4.5mΩ@VGS=4.5V
* Super high density cell design for extremely low RDS(ON)

Applications

* Power Management in Note book
* Battery Powered System
* DC/DC Converter
* Load Switch e Ordering Information: ME4626 (Pb-free) ME4626-G (Green product-Halogen free) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current( TJ =150℃)
* TA=25℃ TA=70℃ Pul
