SF4-DC60V - POLARISED / MONOSTABLE SAFETY RELAY with (mechanical linked) forced contacts operation

SF POLARISED, MONOSTABLE SAFETY RELAY with (mechanical linked) forced contacts operation π 53.3±0.3 2.098±.012 25.0 .984 16.5±0.3 .650±.012 (SF3 pending) (SF3 pending) (SF3 pending) SF-RELAYS enables to plan a circuit to detect welding or go back to the beginning condition.

Separated chamber structure (2 Form A 2 Form B, 3 Form A 1 Form B, 4 Form A 4 Form B) N.O.

and N.C.

side contacts are put in each own space surrounded with a card and a body-separater.

That prevents short circuit

SF4-DC60V Features

* Forced operation contacts (2 Form A 2 Form B, 3 Form A 1 Form B) N.O. and N.C. side contacts are connected through a card so that one interacts with the other in movement. In case of a contact welding, the other keeps a min. 0.5mm .020inch contact gap.

* Independent operation conta

SF4-DC48.pdf

This datasheet PDF includes multiple part numbers: SF4-DC60V, SF4. Please refer to the document for exact specifications by model.

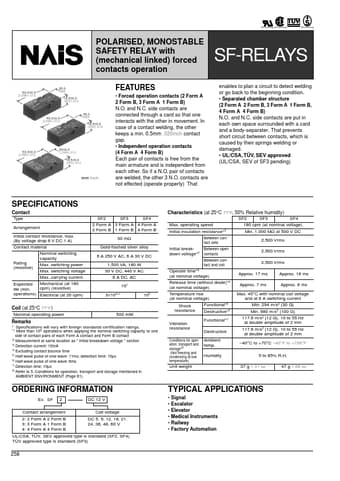

SF4-DC60V Datasheet Preview Page 2 SF4-DC60V Datasheet Preview Page 3

Datasheet Details

Part number:

SF4-DC60V, SF4

Manufacturer:

Matsushita Electric Works(Nais)

File Size:

338.30 KB

Description:

Polarised / monostable safety relay with (mechanical linked) forced contacts operation.

Note:

This datasheet PDF includes multiple part numbers: SF4-DC60V, SF4.
Please refer to the document for exact specifications by model.
