SP2526A - Dual Channel USB Power Distribution Switch

Product Overview

MaxLinear

Datasheet Details

Part number	SP2526A
Manufacturer	MaxLinear
File Size	521.71 KB
Description	Dual Channel USB Power Distribution Switch
Datasheet	SP2526A Datasheet

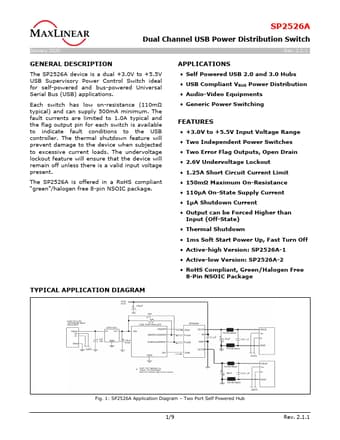

Additional preview pages of the SP2526A datasheet.

Product details

Description

The SP2526A device is a dual +3.0V to +5.5V USB Supervisory Power Control Switch ideal for self-powered and bus-powered Universal Serial Bus (USB) applications.

Features

+3.0V to +5.5V Input Voltage Range.
Two Independent Power Switches.
Two Error Flag Outputs, Open Drain.
2.6V Undervoltage Lockout.
1.25A Short Circuit Current Limit.
150mΩ Maximum On-Resistance.
110μA On-State Supply Current.
1μA Shutdown Current.
Output can be Forced Higher than Input (Off-State).
Thermal Shutdown.
1ms Soft Start Power Up, Fast Turn Off.
Active-high Version: SP2526A-1.
