SP2525A - Single Channel USB Power Distribution Switch

Product Overview

Exar

📥 Download Datasheet

SP2525A Single Channel USB Power Distribution Switch by Exar - Datasheet Preview — Datasheet preview – SP2525A

Datasheet Details

Part number	SP2525A
Manufacturer	Exar
File Size	710.97 KB
Description	Single Channel USB Power Distribution Switch
Datasheet	SP2525A Datasheet

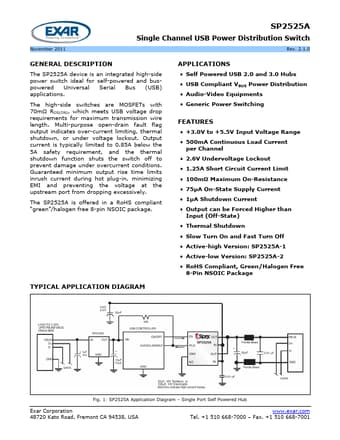

Additional preview pages of the SP2525A datasheet.

Product details

Description

The SP2525A device is an integrated high-side power switch ideal for self-powered and buspowered Universal Serial Bus (USB) applications.

Features

+3.0V to +5.5V Input Voltage Range.
500mA Continuous Load Current per Channel.
2.6V Undervoltage Lockout.
1.25A Short Circuit Current Limit.
100mΩ Maximum On-Resistance.
75μA On-State Supply Current.
1μA Shutdown Current.
Output can be Forced Higher than Input (Off-State).
Thermal Shutdown.
Slow Turn On and Fast Turn Off.
Active-high Version: SP2525A-1.
Active-low Version: SP2525A-2.
RoHS Compliant, Green/Halogen Free 8-Pin NSOIC.
