SP2525-1EN

+3.0V to +5.5V USB Power Control Switch

SP2525-1EN Features

* The SP2525 device is a single +3.0V to +5.5V USB Supervisory Power Control Switch ideal for self-powered and bus-powered Universal Serial Bus (USB) applications. USB provides a +5.0V bus and ground return line in addition to a twisted pair line for data. Features of the SP2525 device include current

SP2525-1EN General Description

The SP2525 device is a single +3.0V to +5.5V USB Supervisory Power Control Switch ideal for self-powered and bus-powered Universal Serial Bus (USB) applications. The SP2525 device has low on-resistance (80mΩ typical) and can supply 500mA minimum. The fault currents are limited to 2.0A typical and th.

SP2525-1EN Datasheet (177.34 KB)

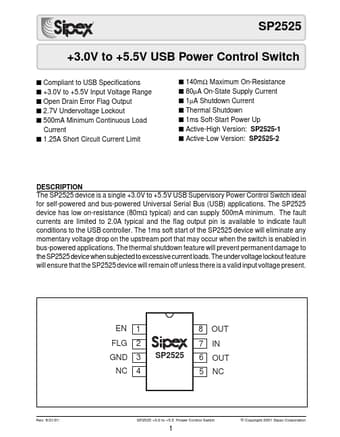

Preview of SP2525-1EN PDF

Datasheet Details

Part number:

SP2525-1EN

Manufacturer:

Sipex

File Size:

177.34 KB

Description:

+3.0v to +5.5v usb power control switch.
® SP2525 +3.0V to +5.5V USB Power Control Switch s Compliant to USB Specifications s +3.0V to +5.5V Input Voltage Range s Open Drain Error Flag Outp.
