XR21B1420 - Enhanced 1-Ch Full-Speed USB UART

Datasheet Summary

Description

The XR21B1420 is an enhanced Universal Asynchronous Receiver and Transmitter (UART) bridge to USB interface.

The USB interface is fully compliant to the USB 2.0 (Full-Speed) specification with 12 Mbps USB data transfer rate.

Features

  • ±15kV ESD on USBD+/USBD.
  • USB 2.0 Compliant, Full-Speed (12Mbps).
  • Unique pre-programmed USB serial number.
  • Internally generated 48MHz core clock.
  • Enhanced UART features.
  • Baud rates from 300bps to 12 Mbps.
  • Fractional Baud Rate Generator.
  • 512-byte TX and 512-byte RX FIFOs.
  • Auto Hardware / Software Flow Control.
  • Multidrop and Half-Duplex Modes.
  • Auto RS-485 Half-Duplex Control.
  • Selectable GPIO or Modem I/O.
  • Up to 10 GPIOs.
  • 5V toler.

📥 Download Datasheet

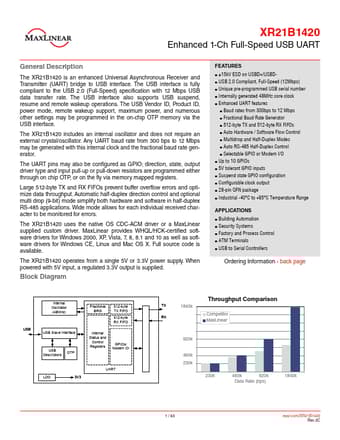

Datasheet preview – XR21B1420
