XR21V1410 - 1-CH FULL-SPEED USB UART

Product Overview

MaxLinear

📥 Download Datasheet

XR21V1410 1-CH FULL-SPEED USB UART by MaxLinear - Datasheet Preview — Datasheet preview – XR21V1410

Datasheet Details

Part number	XR21V1410
Manufacturer	MaxLinear
File Size	1.21 MB
Description	1-CH FULL-SPEED USB UART
Datasheet	XR21V1410 Datasheet

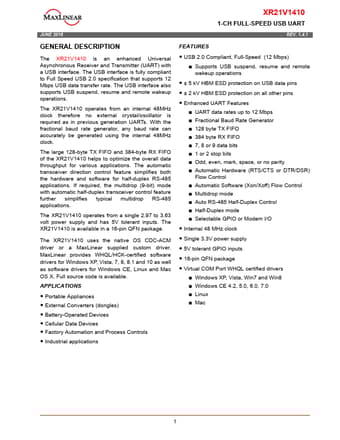

Additional preview pages of the XR21V1410 datasheet.

Product details

Description

The XR21V1410 is an enhanced Universal Asynchronous Receiver and Transmitter (UART) with a USB interface.

Features

USB 2.0 Compliant, Full-Speed (12 Mbps).
Supports USB suspend, resume and remote wakeup operations.
± 5 kV HBM ESD protection on USB data pins.
± 2 kV HBM ESD protection on all other pins.
Enhanced UART Features.
UART data rates up to 12 Mbps.
Fractional Baud Rate Generator.
128 byte TX FIFO.
384 byte RX FIFO.
7, 8 or 9 data bits.
1 or 2 stop bits.
Odd, even, mark, space, or no parity.
Automatic Hardware (RTS/CTS or DTR/DSR) Flow.
