XR21V1412 - 2-CH FULL-SPEED USB UART

Datasheet Summary

Description

The XR21V1412 is an enhanced 2-channel Universal Asynchronous Receiver and Transmitter (UART) with a USB interface.

The USB interface is fully compliant to Full Speed USB 2.0 specification that supports 12 Mbps USB data transfer rate.

Features

  • USB 2.0 Compliant, Full-Speed (12 Mbps).
  • Supports USB suspend, resume and remote wakeup operations.
  • ± 5 kV HBM ESD protection on USB data pins.
  • ± 2 kV HBM ESD protection on all other pins.
  • Enhanced Features of each UART.
  • UART data rates up to 12 Mbps.
  • Fractional Baud Rate Generator.
  • 128 byte TX FIFO.
  • 384 byte RX FIFO.
  • 7, 8 or 9 data bits.
  • 1 or 2 stop bits.
  • Odd, even, mark, space or no parity.
  • Automatic Hardware (RTS/CTS or DTR/DSR.

📥 Download Datasheet

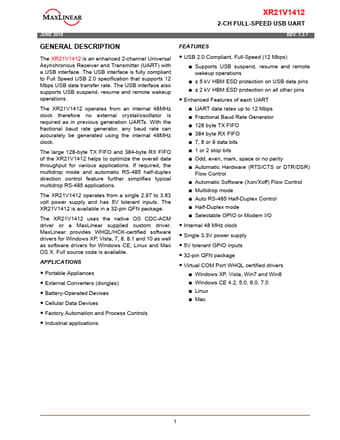

Datasheet preview – XR21V1412

Datasheet Details

Part number XR21V1412
Manufacturer MaxLinear
File Size 1.27 MB
Description 2-CH FULL-SPEED USB UART
Datasheet download datasheet XR21V1412 Datasheet
Additional preview pages of the XR21V1412 datasheet.

📁 Similar Datasheet

  • XR21V1412 - 2-Ch Full-Speed USB UART (Exar Corporation)
  • XR21V1410 - 1-Ch Full-Speed USB UART (Exar Corporation)
  • XR21V1414 - 4-Ch Full-Speed USB UART (Exar Corporation)
  • XR210 - FSK Modulator / Demodulator (Exar)
  • XR210 - Snap-Mount Rocker (Tyco)
  • XR2100 - V.21 Modem (Exar)
  • XR2103 - FSK Modem Filter (Exar)
  • XR2126 - Bell 212A / CCITT V.22 Modem Filters (Exar)
  • XR2127 - Bell 212A / CCITT V.22 Modem Filters (Exar)
  • XR2128 - Bell 212A / CCITT V.22 Modem Filters (Exar)
Other Datasheets by MaxLinear

Full PDF Text Transcription

Click to expand full text
XR21V1412 2-CH FULL-SPEED USB UART JUNE 2018 REV. 1.3.1 GENERAL DESCRIPTION The XR21V1412 is an enhanced 2-channel Universal Asynchronous Receiver and Transmitter (UART) with a USB interface. The USB interface is fully compliant to Full Speed USB 2.0 specification that supports 12 Mbps USB data transfer rate. The USB interface also supports USB suspend, resume and remote wakeup operations. The XR21V1412 operates from an internal 48MHz clock therefore no external crystal/oscillator is required as in previous generation UARTs. With the fractional baud rate generator, any baud rate can accurately be generated using the internal 48MHz clock. The large 128-byte TX FIFO and 384-byte RX FIFO of the XR21V1412 helps to optimize the overall data throughput for various applications.
