DS28CM00 - SMBus Silicon Serial Number

Description

The DS28CM00 is a low-cost, electronic registration number to provide an absolutely unique identity that can be determined with the industry standard I²C and SMBus interface.

Features

  • Unique, Factory-Lasered and Tested 64-bit Registration Number (8-bit Family Code + 48-bit Serial Number + 8-bit CRC) SMBus-Compatible I²C Serial Interface Supports 100kHz and 400kHz Communication Speeds 5V Tolerant Interface Pins Operating Range: 1.8V ±10% to 5V ±5%, -40°C to +85°C 5-Pin SOT23 Package.

📥 Download Datasheet

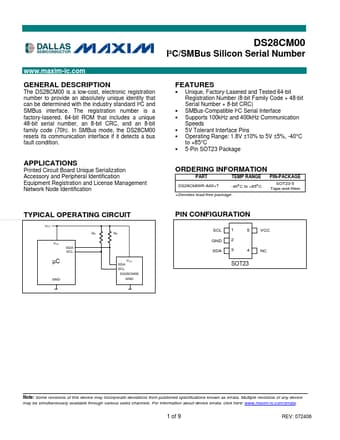

Datasheet preview – DS28CM00

📁 Similar Datasheet

  • DS28C36 - DeepCover Secure Authenticator (Maxim Integrated)
  • DS28C50 - I2C Secure SHA-3 Authenticator (Maxim Integrated)
  • DS2801 - PFT Hydrostatic Level Sensor (TT)
  • DS2802 - PFT Hydrostatic Level Sensor (TT)
  • DS280BR810 - Low Power 28 Gbps 8 Channel Linear Repeater (Texas Instruments)
  • DS280BR820 - Low Power 28 Gbps 8 Channel Linear Repeater (Texas Instruments)
  • DS280DF810 - 28 Gbps Multi-Rate 8-Channel Retimer (Texas Instruments)
  • DS280MB810 - Low Power 28 Gbps 8 Channel Linear Repeater (Texas Instruments)
  • DS2890 - 1-Wire Digital Potentiometer (Dallas Semiconducotr)
  • DS28DG02 - 2kb SPI EEPROM (Dallas Semiconductor)
Other Datasheets by Maxim Integrated Products
  • DS28CN01 - 1Kbit I2C/SMBus EEPROM
  • DS28CZ04 - EEPROM
  • DS28E02 - 1-Wire SHA-1 Authenticator 1Kb EEPROM
  • DS28E10 - 1-Wire SHA-1 Authenticator
  • DS28E25 - DeepCover Secure Authenticator
  • DS2030AB - Single-Piece 256kb Nonvolatile SRAM
  • DS2030W - 3.3V Single-Piece 256k Nonvolatile SRAM
  • DS2030Y - Single-Piece 256kb Nonvolatile SRAM

Full PDF Text Transcription

Click to expand full text
DS28CM00 I²C/SMBus Silicon Serial Number www.maxim-ic.com GENERAL DESCRIPTION The DS28CM00 is a low-cost, electronic registration number to provide an absolutely unique identity that can be determined with the industry standard I²C and SMBus interface. The registration number is a factory-lasered, 64-bit ROM that includes a unique 48-bit serial number, an 8-bit CRC, and an 8-bit family code (70h). In SMBus mode, the DS28CM00 resets its communication interface if it detects a bus fault condition. FEATURES ƒ ƒ ƒ ƒ ƒ ƒ Unique, Factory-Lasered and Tested 64-bit Registration Number (8-bit Family Code + 48-bit Serial Number + 8-bit CRC) SMBus-Compatible I²C Serial Interface Supports 100kHz and 400kHz Communication Speeds 5V Tolerant Interface Pins Operating Range: 1.
