DS8314

(DS8313 / DS8314) Smart Card Interface

DS8314 Features

* Analog Interface and Level Shifting for IC Card Communication

* ±8kV (min) ESD (HBM) Protection on Card Interfaces

* Ultra-Low Stop-Mode Current, Less Than 10nA Typical

* Internal IC Card Supply-Voltage Generation 5.0V ±5%, 80mA (max) 3.0V ±8%, 65mA (max) 1.8V ±10%,

DS8314 General Description

The DS8313 smart card and SIM interface IC is a lowcost, analog front-end for a smart card reader designed for smart card applications that do not require the use of the auxiliary card I/O contacts C4 and C8 (AUX1 and AUX2). The DS8313 supports 5V, 3V, and 1.8V smart cards. The absence of a charge p.

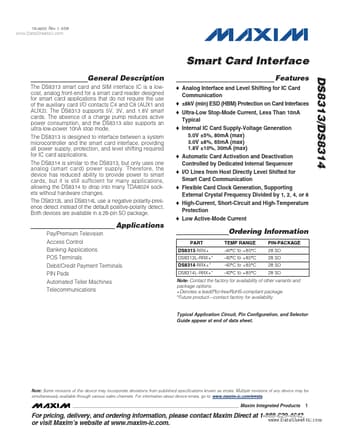

DS8314 Datasheet (307.80 KB)

Preview of DS8314 PDF

Datasheet Details

Part number:

DS8314

Manufacturer:

Maxim Integrated ↗ Products

File Size:

307.80 KB

Description:

(ds8313 / ds8314) smart card interface.
