DS8304

200mA Low Dropout Voltage Linear Regulator

DS8304 Features

* 2.2μA Ground Current at no Load

* ±2% Output Accuracy

* 200mA Output Current

* Wide Operating Input Voltage Range: 2V to 30V

* Dropout Voltage: 0.15V at 100mA / VOUT 5V

* Support Fixed Output Voltage 1.2V, 1.8V, 3.3V, 5V, 9V, 12V

* Stable with Ceramic or Tantalum Capaci

DS8304 General Description

The DS8304 series are a group of low-dropout ( LDO ) voltage regulators offering the benefits of wide input voltage range, low dropout voltage, low power consumption, and miniaturized packaging. Quiescent current of only 2.2µA makes these devices ideal for powering the battery-powered, always-on sys.

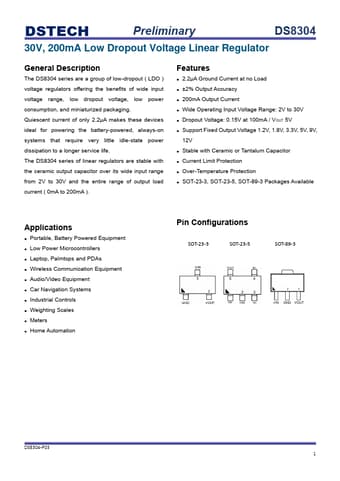

DS8304 Datasheet (664.82 KB)

Preview of DS8304 PDF

Datasheet Details

Part number:

DS8304

Manufacturer:

DSTECH

File Size:

664.82 KB

Description:

200ma low dropout voltage linear regulator.
