DS8603

200mA Low Dropout Voltage Linear Regulator

DS8603 Features

* 2.2μA Ground Current at no Load

* ±1% Output Accuracy

* 200mA Output Current

* 10nA Disable Current

* Wide Operating Input Voltage Range: 2V to 55V

* Dropout Voltage: 0.66V at 100mA / VOUT 5V

* Support Fixed Output Voltage 1.8V, 3.3V, 5V, 9V, 12V

* Stable with Ceram

DS8603 General Description

The DS8603 series are a group of low-dropout ( LDO ) voltage regulators offering the benefits of wide input voltage range, low dropout voltage, low power consumption, and miniaturized packaging. Quiescent current of only 2.2µA makes these devices ideal for powering the battery-powered, always-on sys.

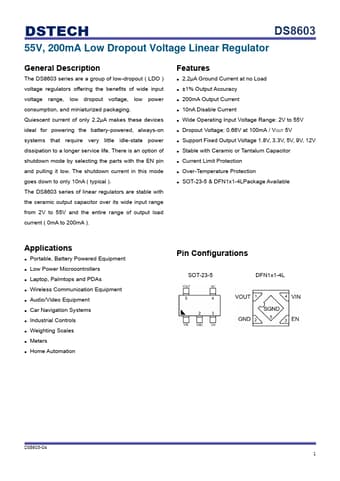

DS8603 Datasheet (715.69 KB)

Preview of DS8603 PDF

Datasheet Details

Part number:

DS8603

Manufacturer:

DSTECH

File Size:

715.69 KB

Description:

200ma low dropout voltage linear regulator.
